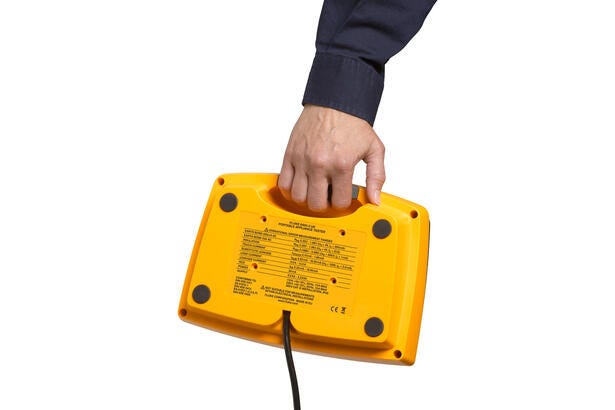

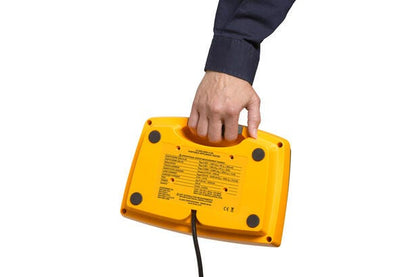

Fluke 6500-2 UK Portable Appliance Tester
The Fluke 6500-2 UK is a test instrument for inspecting portable electrical appliances. It is used to check if an appliance is in good working order after service, internal inspection, or statutory testing. In practice, it is the tool used to perform fixed safety tests on equipment that is moved around and connected by cable.
The instrument can, among other things, be used for measurements of earth bond, insulation, leakage current, touch current, load, RCD, IEC lead, and PELV. This means that both safety and function can be thoroughly covered in the same test sequence. For a technician, this is relevant because it quickly provides an overview of whether the appliance is behaving as it should before it is put back into use.
The Fluke 6500-2 UK also features a large backlit display, an integral QWERTY keyboard, detachable test leads, and USB for data transfer. This makes it more practical for daily use, especially when results need to be recorded and work is done at various test sites.
This is a complete UK kit, which includes equipment for extension cables, barcode scanning, and labeling of approved and rejected appliances. This makes the set suitable when you want a comprehensive solution for appliance testing and recording in one workflow.
You can read more here:
View datasheet from the manufacturer
Specifications
- Manufacturer: FLUKE
- MPN: 4324475
- Type: portable appliance tester (PAT tester)
- Measurement functions: earth bond (RPE), insulation (RISO), substitute leakage current, touch current, load/leakage, RCD, IEC lead and PELV

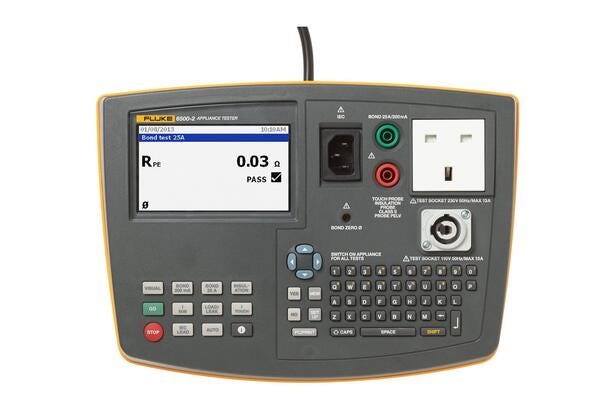

- Display: large backlit display
- Keyboard: integral QWERTY keyboard
- Test leads: detachable test leads

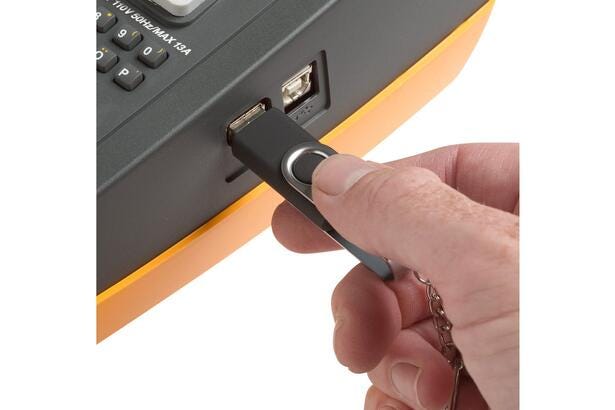

- Data transfer: USB port
- Dimensions: 200 x 275 x 114 mm
- Weight: 3.13 kg
- Operating temperature: 0 to 40 °C

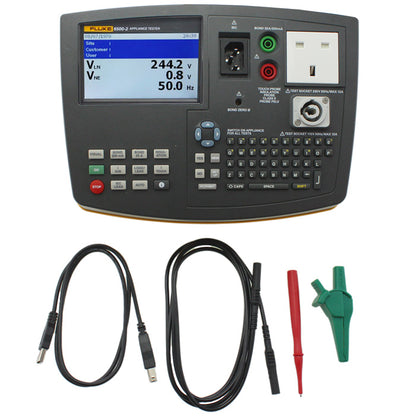

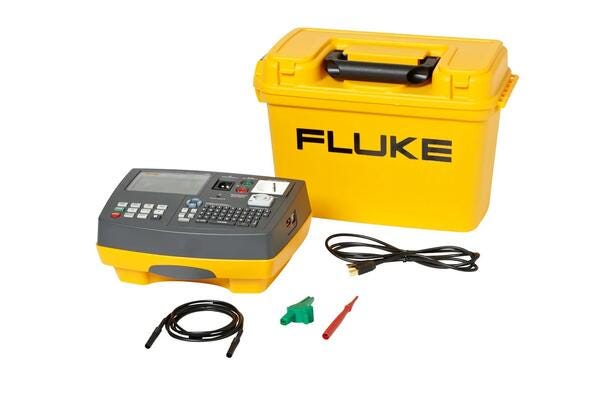

- Kit contents: 6500-2 tester, EXTL100 extension lead test adaptor, SPScan6000 barcode scanner, pass/fail labels and USB stick/cable
