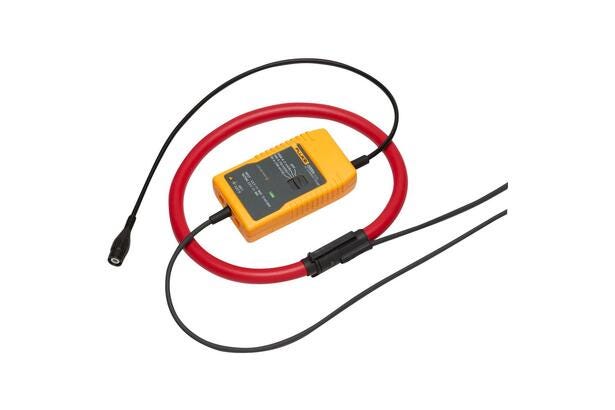

Fluke i3000s Flex-24 AC Current Clamp
The Fluke i3000s Flex-24 is a flexible AC current clamp for measuring currents up to 3000 A AC rms. It is typically used with oscilloscopes, loggers, or other measuring instruments when high current needs to be measured without interrupting the circuit.
The flexible measuring loop makes it easier to get around conductors where space is tight or where a conventional clamp cannot reach. This is especially practical in panels, installations, and other places with large or difficult cable runs.
As a Rogowski-based current clamp, it measures AC current without needing to be clipped on like a traditional clamp with fixed jaws. It has three selectable measurement ranges, allowing the signal to be adapted to the current level. This makes it more versatile across tasks, from lower currents to very high loads.
The output is fed via a cable with safety BNC, and an adapter for 4mm safety plugs is included. This makes it easy to connect to equipment that accepts this type of input. With CAT III 600 V, it is suitable for common industrial measurement tasks where the correct safety level must still be maintained.
You can read more here:
See datasheet from the manufacturer
Specifications
- AC current clamp with Rogowski principle
- Measures up to 3000 A AC rms
- Three selectable ranges: 30 A, 300 A, and 3000 A
- Probe head circumference: 610 mm
- Maximum conductor diameter: 178 mm
- Output via 0.5 m cable with safety BNC
- Comes with adapter for 4 mm safety plugs
- CAT III 600 V
- Output sensitivity: 100 mV, 10 mV or 1 mV per A (AC-coupled)
