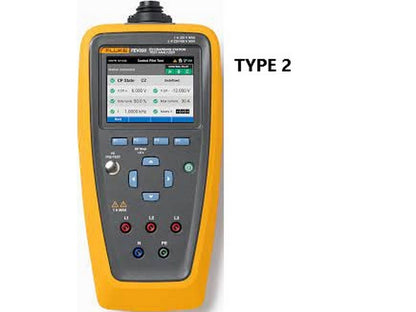

FEV350 EV Charging Station Analyzer TYPE 2

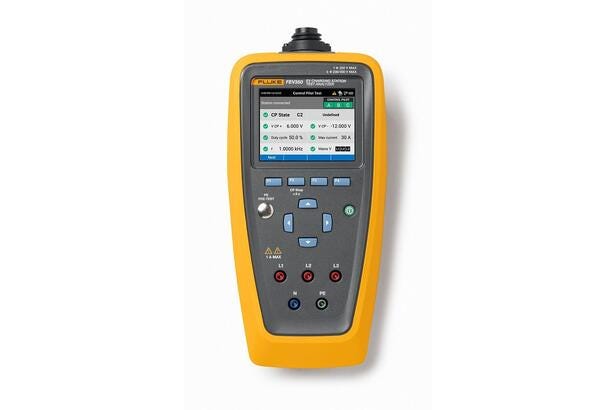

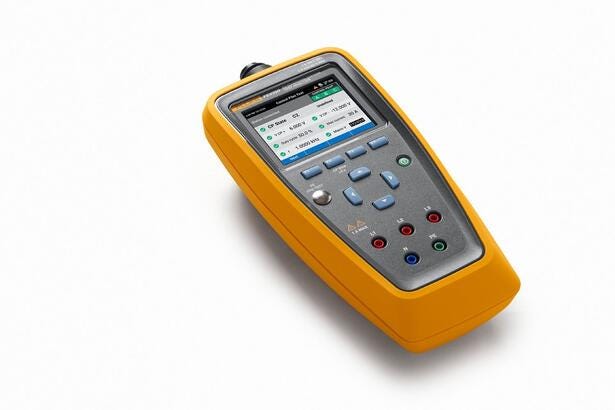

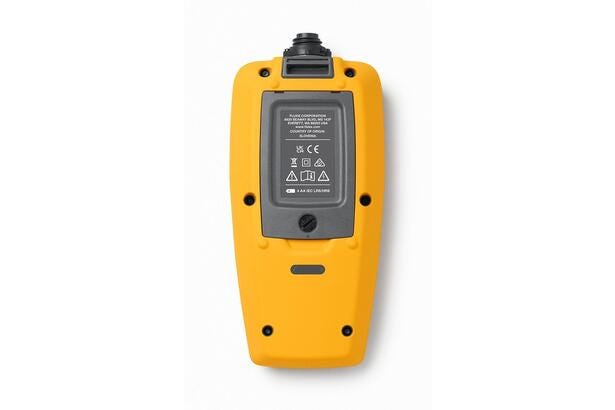

Fluke FEV350/TY2 — EV charging station analyzer

The Fluke FEV350/TY2 is a handheld analysis tool for testing AC charging stations with Type 1 and Type 2 connectors. The device performs both safety and functional measurements and is designed to provide clear pass/fail results and waveform analysis of the control pilot (CP).

Features and test capacity

• PE (protective earth) pre-test for checking hazardous voltage
• Visual inspection with checklist
• RCD test: 30 mA RCD and RDC-DD test (incl. +6 mA specifications)
• Nominal voltage and phase sequence
• Auto control pilot (CP) with waveform analysis and CP modes (A, B, C, D)
• Proximity pilot and error test
• Integration with TruTest software for data management and reporting via Bluetooth

Typical applications

• Used for safety testing of AC charging stations with Type 1 and Type 2 connector configurations.
• Used for functional control of charging station control pilot (CP) including waveform analysis.
• Used for troubleshooting and verification of RCD/RDC-DD performance and PE conditions.

Integration and documentation

The device supports wireless data transfer via Bluetooth 5.0 and can receive test plans from and send measurement results to Fluke's TruTest software for documentation and report generation. For detailed measurement and error limit information, please refer to the manufacturer's datasheet. See manufacturer's datasheet

Specifications

• Product: Fluke FEV350/TY2
• Primary test functions: PE pre-test, visual inspection, 30 mA RCD, +6 mA RDC-DD, nominal voltage and phase sequence, CP waveform analysis, proximity and error testing (specified in manufacturer documentation)
• Power supply: 4 × AA (alkaline or NiMH)
• Size (H × W × D): approx. 263 mm × 123 mm × 63 mm (without TY-plug)
• Weight: approx. 0.9 kg (without TY-plug); 1.4 kg with TY-plug
• Wireless: Bluetooth 5.0
• Input electrical ratings: 1-phase 250 V max; 3-phase 230/400 V max; 50/60 Hz; max 1 A
• Internal power consumption: 3 W max
• Temperature (operating): -10 °C to 40 °C; (storage): -20 °C to 50 °C
• Relative humidity: operating 10 %–85 % at 0 °C–40 °C, storage up to 95 %
• Input impedances and CP specifications, ramp currents, measurement ranges and operational error limits: specified in manufacturer's datasheet
• Design standards: IEC/EN 61851-1 and IEC/HD 60364-7-722 (specified by manufacturer)

Source: Fluke manufacturer documentation (see datasheet linked above).
