Product Overview

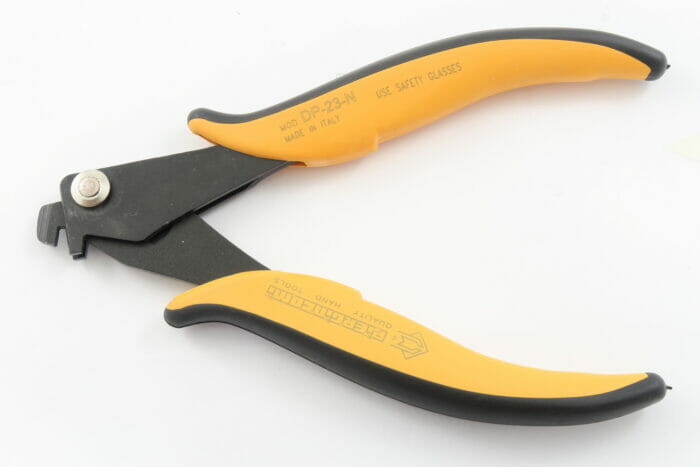

This text describes the DP 23 N, a manual depaneling tool from PIERGIACOM designed to separate printed circuit boards (PCBs). The product is also available in an ESD-safe version under the order code DP 23 N D. The information has been verified on the manufacturer's product page.Design and Function
The DP 23 N is a hand tool intended for the mechanical separation of PCBs by cutting at the isthmus (tab). The tool's essential dimensions and performance parameters are specified by the manufacturer and include blade thickness, maximum cutting force, and supported PCB thickness, among others.- Blade thickness: 2.3 mm
- Length: 147 mm
- Weight: 90 g
- Maximum cutting force: 7 kg
- Maximum PCB thickness: 1.6 mm
- Minimum isthmus distance: 11 mm
- Maximum isthmus (tab) length: 3 mm
- Handle model: "St"
Typical Applications
The DP 23 N is used to separate printed circuit boards (PCBs) by mechanical detachment. Its use is limited to the specified maximum PCB thickness (1.6 mm) and to isthmus dimensions within the manufacturer's specified limits (minimum 11 mm between isthmuses and maximum isthmus length of 3 mm).Specifications
- Product name: DP 23 N (ESD variant: DP 23 N D)
- Blade thickness: 2.3 mm
- Length: 147 mm
- Weight: 90 g
- Maximum cutting force: 7 kg
- Maximum PCB thickness: 1.6 mm
- Minimum isthmus distance: 11 mm
- Maximum isthmus length: 3 mm
- Handle model: St
