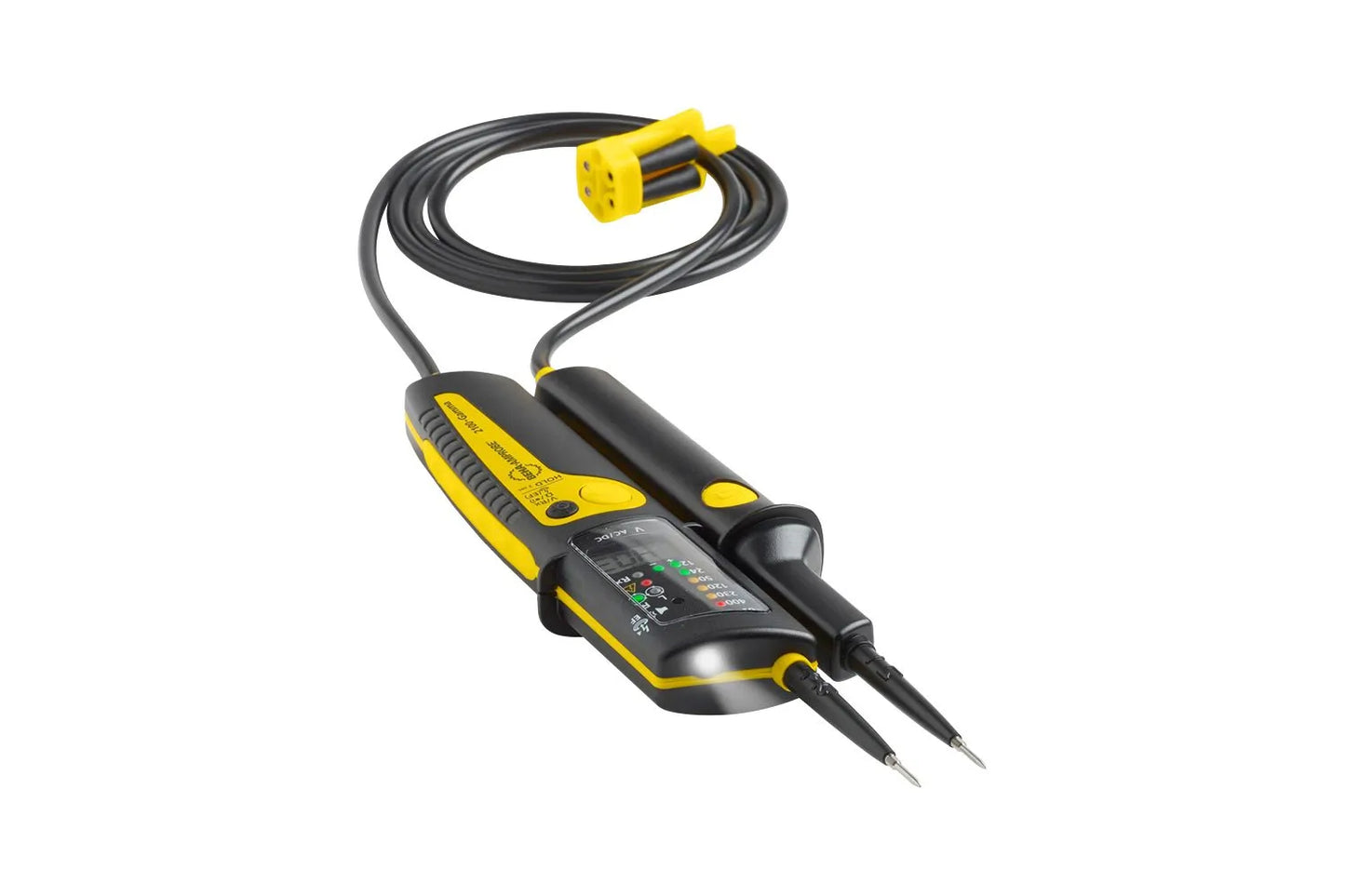

Electrical tester 1000V AC/1500V DC - 200A AC CAT III 1000V/CAT IV 600V

Two-pole voltage tester

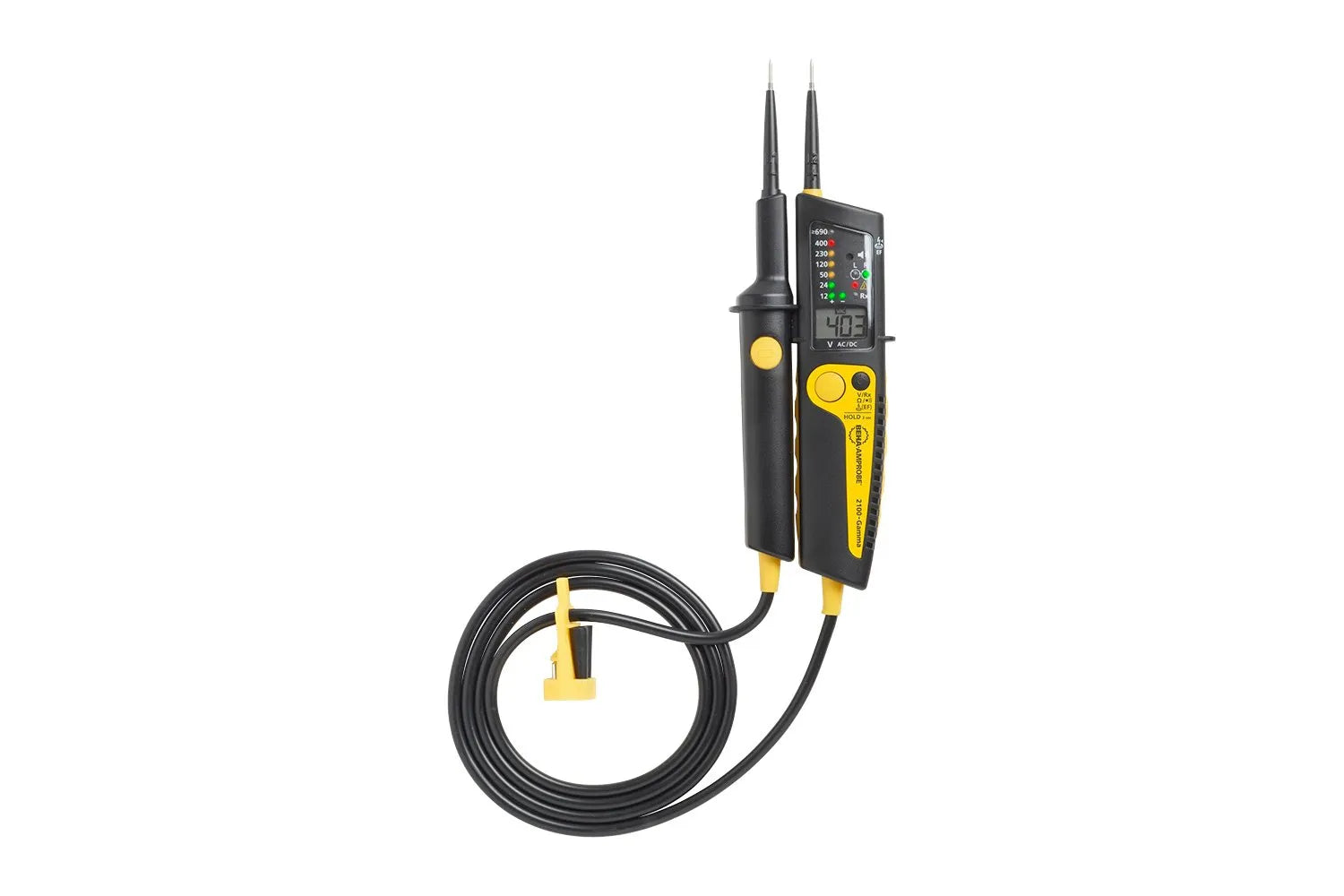

The Beha-Amprobe 2100-GAMMA is a two-pole voltage tester designed for measuring voltage and continuity. The device combines an LED indicator panel and a digital LCD, and is intended for direct reading of AC/DC voltage, continuity, and phase relationship.

What the product does

• Detects AC and DC voltage with automatic AC/DC detection and full-range polarity indication.
• Displays voltage via both LED panel and digital LCD (up to 1000 V AC / 1200 V DC for 2100-GAMMA).
• Performs continuity testing with visual and acoustic indication.
• Supports two-button switchable load for RCD tripping (10 mA or 30 mA) and eliminates erroneous readings from ghost voltage upon activation.
• Indicates phase relationship as both single-pole phase test and two-pole phase rotation indicator (right/left).

Design and safety

• The device is safety rated CAT III 1000 V / CAT IV 600 V as specified for the 2100-GAMMA.
• IP64 rating (splash-proof and dust-tight).

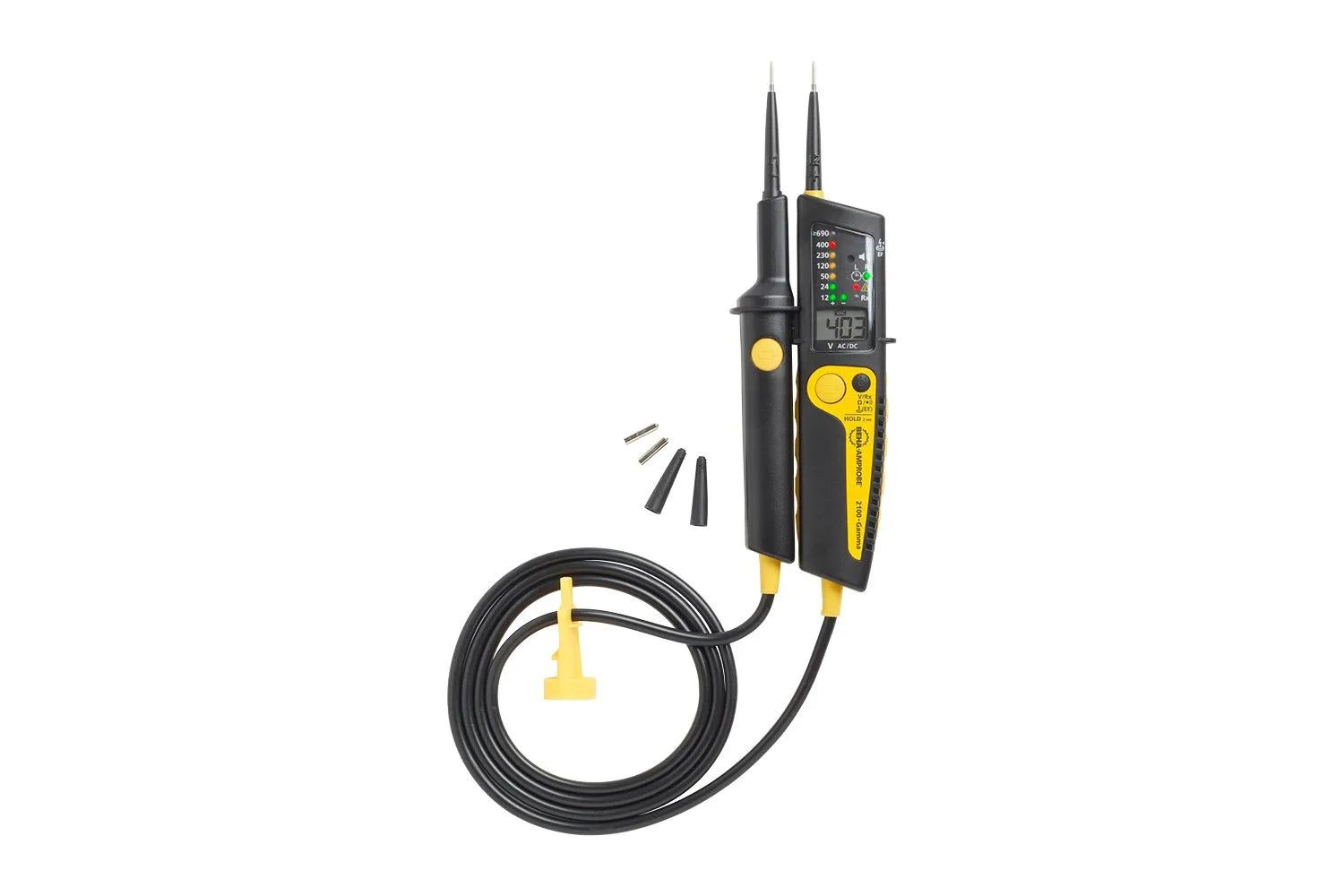

• Reinforced, double-insulated test leads with wear indicator and probe-tip protection.
• LED and LCD response time under 1 s, and acoustic indication at ≥50 V AC and ≥120 V DC.

Typical applications

• Voltage and continuity measurements in industrial and commercial environments, as mentioned by the manufacturer.
• RCD tripping test at 10 mA or 30 mA for checking residual current devices.
• Phase polarity and rotation check with both single-pole and two-pole indication.

For technical details and complete specification overview, please refer to the manufacturer's datasheet:

See datasheet from the manufacturer

Specifications

• Manufacturer: AMPROBE / Beha-Amprobe
• Model: 2100-GAMMA (Manufacturer part number: 4709243)
• Voltage measurement: up to 1000 V AC and 1200 V DC
• Safety category: CAT III 1000 V / CAT IV 600 V
• IP rating: IP64 (splash-proof and dust-tight)
• Resistance measurement (2100-GAMMA): 0...1999 Ω (resolution 1 Ω)
• Continuity test: < 500 kΩ (visual and acoustic indication)
• RCD-trip test: switchable load for 10 mA or 30 mA
• Overload protection / overvoltage protection: 1000 VAC / 1200 VDC
• Dimensions (approx.): 280 x 78 x 35 mm; weight (approx.): 320 g
• Power supply: 2 x 1.5 V (AAA / IEC LR03)
