Product Overview

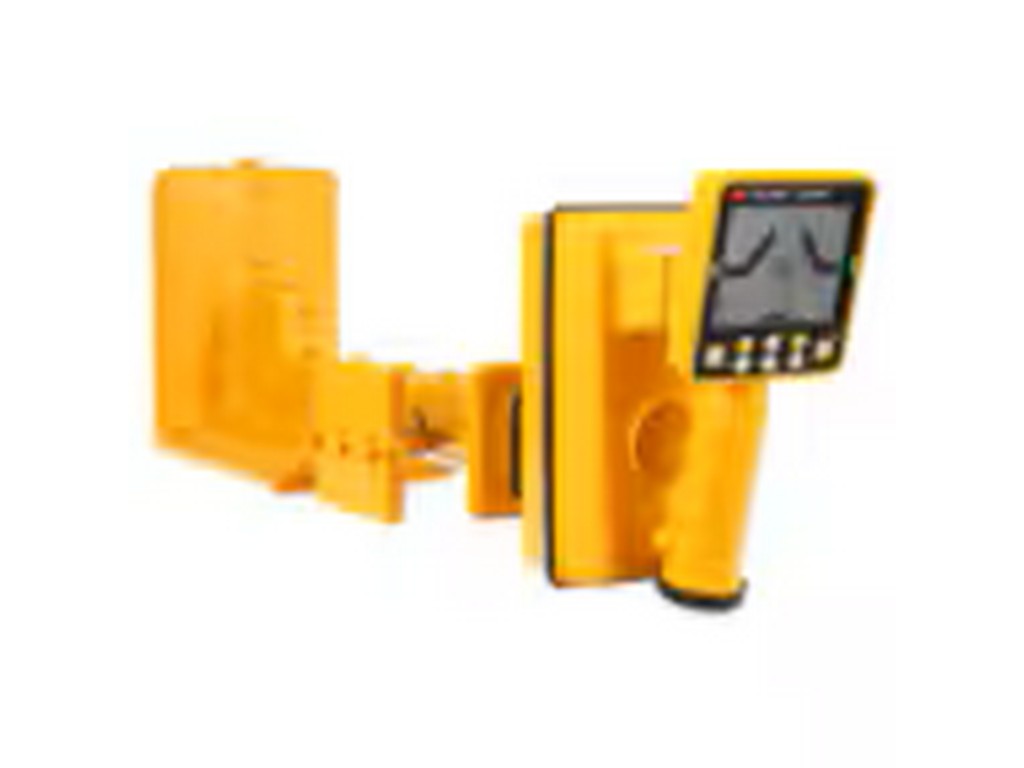

This receiver-only locator, the 3M Dynatel Locator 7573XE (3M ID 7100213427), is a handheld locating instrument designed for locating markers, cables, pipes, and faults. The device is part of the 3M Dynatel 7500XE series and includes integrated GPS, Bluetooth connectivity, and a large backlit graphical LCD screen, as documented in the manufacturer's technical data sheet.Key Features
- Receiver-only functionality for reading, writing, and locating 3M iD Markers and for following 3M EMS Path Marking Tape.
- Built-in GPS (autonomous position accuracy CEP50 ≈ 3 m) and Bluetooth 5.0 (GAP, GATT, SPP).
- USB port compatible with USB Type-C for data export and charging.
- Uses a 3M rechargeable battery pack (Li-Ion according to product description) with built-in charger and typical battery life stated as 8 hours in the data sheet.
- Large 4.4” diagonal LCD display with menu graphic interface and integrated tone functions.
Documentation
The product's technical details and measurement parameters are provided in 3M's technical data sheet. See manufacturer's datasheet.Typical Applications
- Locating and tracking 3M EMS Path Marking Tape.
- Reading, writing, and locating 3M iD Markers.
- Locating cables, pipes, and identifying fault locations.
Specifications
- Product: 3M Dynatel Locator 7573XE (3M ID 7100213427)
- Type: Receiver-only utility locator
- GPS: Internal, autonomous position accuracy CEP50 ≈ 3 m
- Bluetooth: Dual-mode Bluetooth 5.0 (GAP, GATT, SPP)
- USB: Compatible with USB Type-C (data export and charging)
- Battery: 3M rechargeable battery pack (Li-Ion mentioned in product text); typical operating time 8 hours
- Charging: Approx. 3 hours with 3A USB Type-C (15 W AC adapter according to data sheet)
- Display: 4.4" diagonal LCD graphical display
- Environment: Operating temperature -20 °C to 50 °C; IP54
- Cable/pipe depth range: 0–914 cm
- Cable/pipe depth accuracy: ±2% ± 7.6 cm for 0–1.5 m; ±6% ± 7.6 cm for 1.5–3.0 m; ±10% ± 7.6 cm for 3.0–4.5 m
- Marker depth accuracy: ±10% ± 5 cm up to specified marker depth
- Locating modes: Trace View, Directional Peak, Null (360°), Special Peak, Dual Peak
Content generated using AI – subject to errors.
Contact HIN for further product information.
