ESD Workbench Frame from TRESTON — CE20075-49

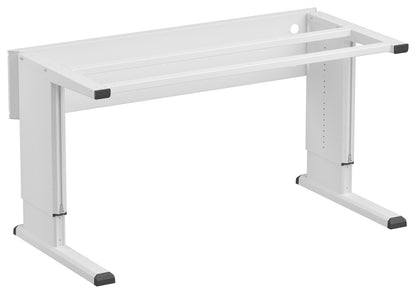

CE20075-49 is a Treston Concept Ergo allen key (manual) adjustable ESD workbench frame designed for a 2000 x 750 mm workbench. The frame is manually adjustable and provides a usable height adjustment range of 700–1100 mm (27.56–43.31 inches). The construction is made of epoxy powder-coated steel with color code RAL7035 (light grey).
Function and Construction
- Manual height adjustment with allen key
- Usable height adjustment range: 700–1100 mm (27.56–43.31 inches)
- Max load: 1102 lbs (approx. 500 kg)
- Material: Epoxy powder-coated steel
- Color: RAL7035 (light grey)
Documentation
A manufacturer's data sheet with additional product information and packaging data is available. See data sheet from the manufacturer
Typical Applications
According to the manufacturer's product text, the Concept Ergo series is designed to be applicable in R&D, ESD environments, assembly, packing, and logistics. CE20075-49 is specified as an ESD-compatible, manually adjustable workbench frame with a modular design that can be customized with accessories.
Further Notes
- Compatibility: The Concept Ergo system is compatible with over 500 accessory parts (stated by the manufacturer)
- Accessories: Accessory support bar is not included with allen key adjustable frames
- Product warranty: 10 years (stated by the manufacturer)
Specifications
- Product code: CE20075-49
- Fits table size: 2000 x 750 mm
- Height adjustment range: 700–1100 mm (27.56–43.31 inches)
- Adjustment method: Manually adjustable (allen key)
- Height adjustment speed: 13 mm/second
- Max load: 1102 lbs (approx. 500 kg)
- Frame material: Epoxy powder-coated steel
- ESD: Yes
- RAL code: RAL7035
- Color name: Light grey
- Net weight: 130 lbs
- Package description (extra data from manufacturer): Package weight 134 lbs, Package dimensions indicated in manufacturer data sheet
- Warranty: 10 years
- Note: Accessory support bar not included
Design your workstation
Source: Manufacturer's product data and data sheet (Treston).
