STAUBLI 33.0131

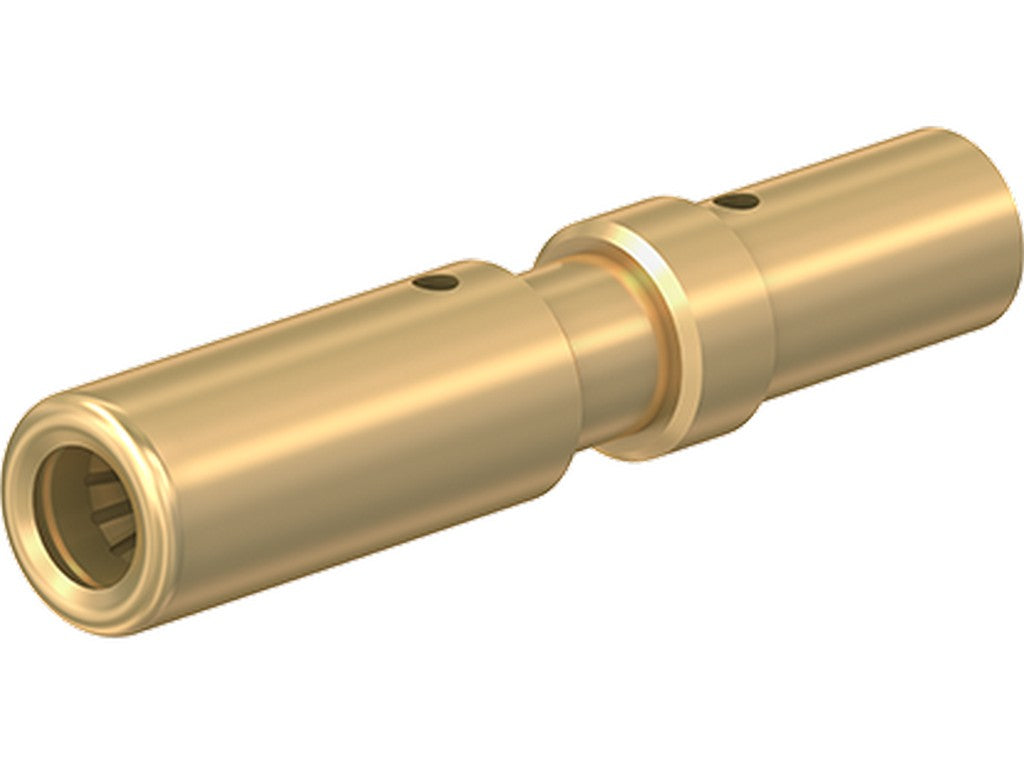

STAUBLI 33.0131 is a 3 mm power socket for the CombiTac system. In practice, it is a female contact that forms part of a modular connector assembly, allowing the solution to be configured as needed. This particular component is the small 3 mm power section, used when power needs to be routed through a compact contact module.
The contact's place within the CombiTac family makes it relevant for systems where multiple connection types are to be consolidated into a single frame. This is precisely how CombiTac is used: one builds a connector tailored to the specific task, rather than being restricted to a fixed standard solution.
For this variant, Staubli specifies a conductor cross-section range of 2.5–4 mm². This is important information as it indicates the wire size the contact is designed for in a professional setup. This allows it to be integrated as part of a customized CombiTac configuration, where space, connection, and mounting type are all accounted for.
If one works with CombiTac, it is typically because one desires a modular and service-friendly connector that can be built for the specific machine or installation. It therefore makes sense to view the 33.0131 as a spare part or building block rather than a standalone contact.
See datasheet from the manufacturerSpecifications
- Manufacturer: STAUBLI
- MPN: 33.0131
- Type: CT-BP3/2,5-4 AU
- 3 mm power socket (female contact)
- For the CombiTac system
- Conductor cross-section: 2.5–4 mm²
- Official documentation: CombiTac main catalogue CT-Main-11014009-en.pdf
