STAUBLI 23.3000-25

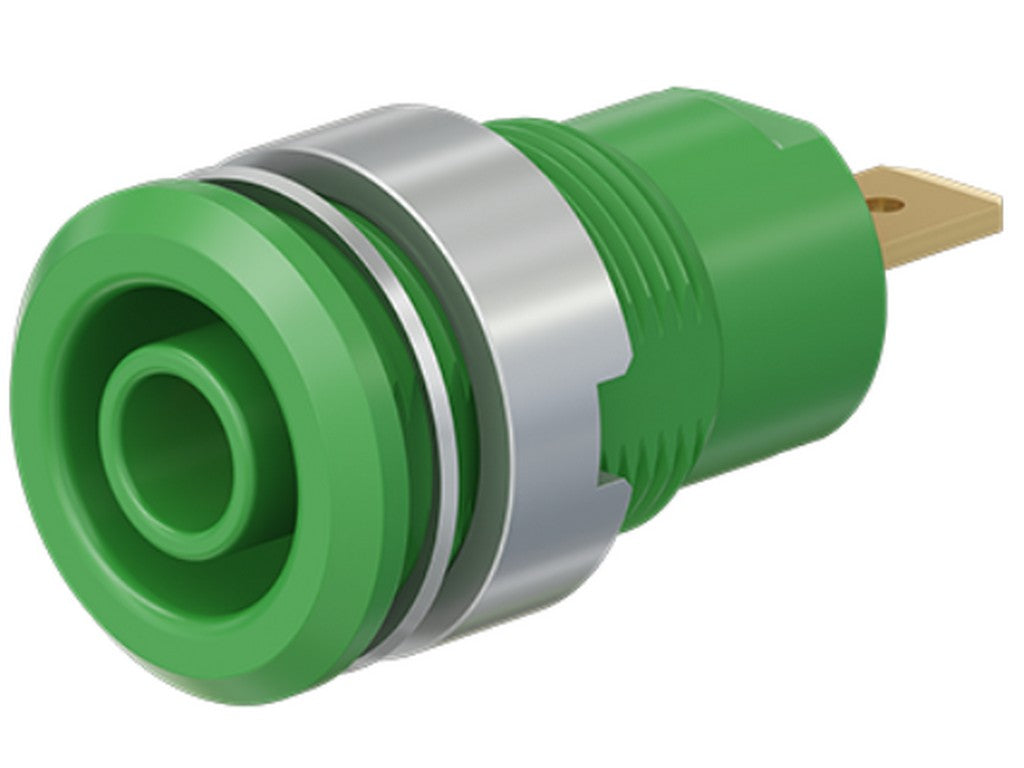

The STAUBLI 23.3000-25 is a built-in panel mount socket, allowing a 4 mm laboratory or test connection to be routed into a front panel or enclosure. It is insulated and rigid, and accepts 4 mm spring-loaded plugs with rigid insulation sleeves. In practice, it is used as a fixed connection point when a secure and tidy connection through a panel is desired.
The electrical contact is made of machined brass with a gold surface. This means that a contact surface suitable for precise measurement and testing tasks, where a stable connection is important, is obtained. The connection at the rear is made with a flat terminal tab of 4.8 x 0.8 mm, and it can be bent 90° once if the mounting requires it.
The socket is screwed into pre-drilled panels of, for example, plastic or metal. This makes it suitable when building fixed panels for test equipment, measurement systems, or other installations where the 4 mm system is used as standard.
Neither the electrical load nor the safety class are accidental details here. With ratings of 1000 V, CAT III, 24 A and 600 V, CAT IV, 24 A, it is intended for professional tasks where both voltage and current must be handled within defined limits.
