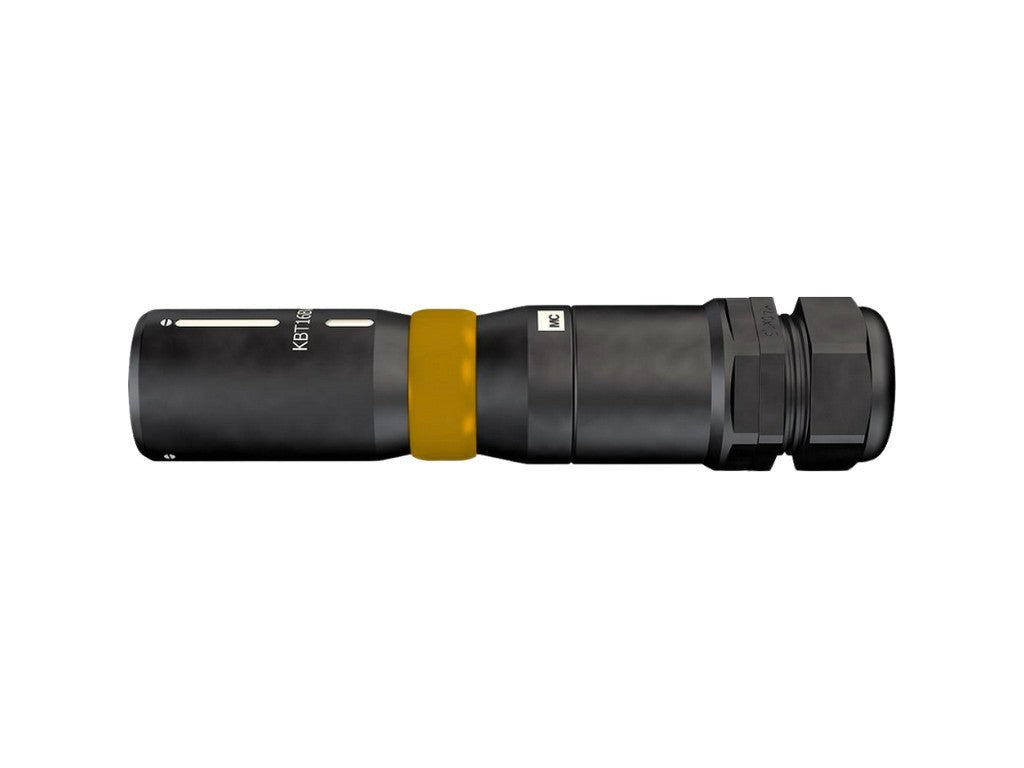

STAUBLI 15.0653-27
The STAUBLI 15.0653-27 is a socket in Stäubli's 16BV series of round power connectors. It is used to terminate a flexible power cable assembly with a bayonet-locked connection, allowing the cable and connection to be handled safely and collectively in the installation.
The KBT16BV-AX variant is designed for AxiClamp cable termination for flexible cables. In practice, this means it is intended for heavy-duty wiring where a robust and controlled connection is required. This version is rated for conductor cross-sections of 95–120 mm², equivalent to 4/0 AWG.
The 16BV series is specified for up to 1000 V AC and a rated current of up to 530 A. This makes it relevant for high-load power connections that demand high voltage, high current, and a mechanically secure connection. It is part of a product family where the order number also indicates the color code, ensuring the correct variant is ordered with the right characteristics.
For assembly, Stäubli refers to instruction MA063. The datasheet can be found here: See datasheet from the manufacturer
Typical applications
- Power connections in industrial installations
- Connection of flexible cables with AxiClamp termination
- Applications requiring high voltage and high current
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0653-27
- Product series: 16BV round connector series
- Variant: KBT16BV-AX/M40/95-120
- Type: socket with bayonet lock
- Cable termination: AxiClamp for flexible cables
- Conductor cross-section: 95–120 mm²
- Conductor cross-section: 4/0 AWG
- Max. voltage: 1000 V AC
- Rated current: up to 530 A
- Assembly instruction: MA063
- Order variant: color code must be specified for 15.0653-*
