STAUBLI 15.0652-22

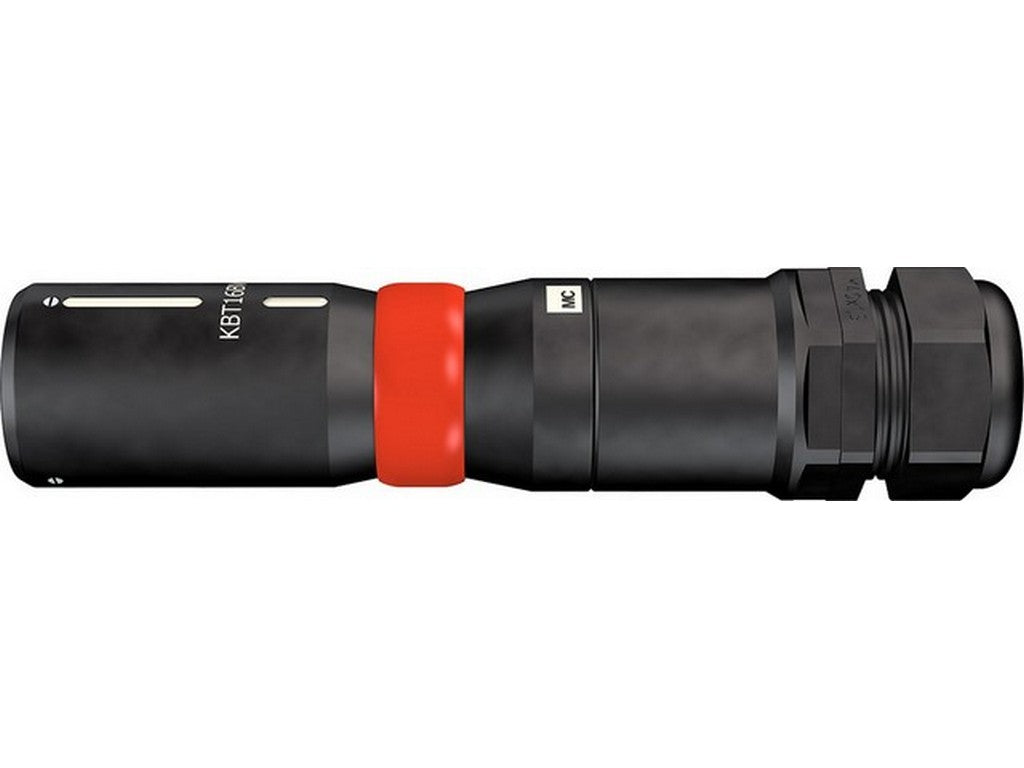

The STAUBLI 15.0652-22 is a socket from Stäubli's 16BV connector family, specifically the KBT16BV-AX/M40/50-70. It is used to establish a robust connection for heavy-duty conductors in the 50–70 mm² range, typically in professional electrical engineering and industry.
This component is designed with the conductor size and cable entry in mind. It is intended for flexible conductors, such as H07RN-F, and the cable gland is specified for a diameter of 15–28 mm. In practice, this means you get a socket that fits relatively thick cables and is also suitable for proper and controlled installation.
Stäubli also provides dimensions relevant for installation and space requirements: the total length is approximately 218 mm, and the diameter is approximately 51.5 mm. Additionally, the specified wrench size for the AxiClamp sleeve is SW 16, which is a practical detail when the part needs to be correctly installed or serviced.
The color code for this variant is 22. In the catalog, it is part of the color code series 20–29 for the 15.0652-*-variants, allowing it to be integrated into a systematic setup where different versions within the same family are distinguished.
