Stäubli 15.0654-23

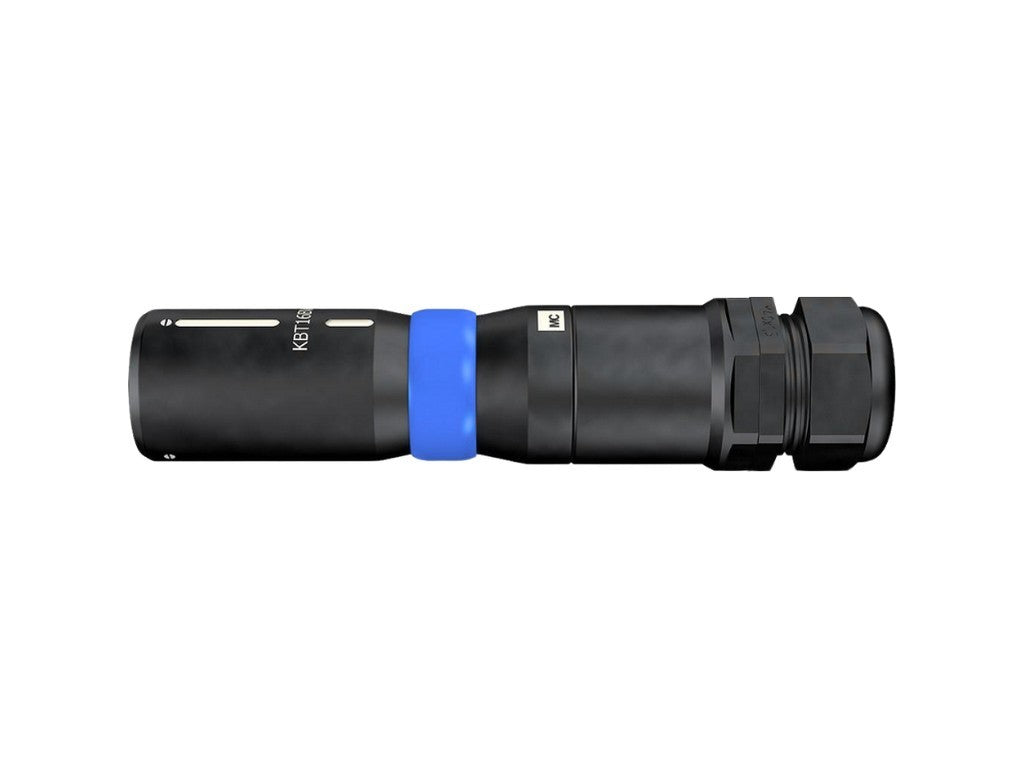

The Stäubli 15.0654-23 is a receptacle for the 16BV circular connector series, specifically the KBT16BV-AX/M40/150-185 variant. It is used when a strong and secure connection is required for flexible cables at the heavy end of the range, where large conductor cross-sections are involved.
Two things are worth noting here: The bayonet lock provides a quick and clear mechanical connection, while the AxiClamp termination is designed for flexible cables. This makes the solution suitable for professional installations where the connection must be able to handle high loads and be practical to install correctly.
The receptacle is specified for conductor cross-sections of 150–185 mm². The 16BV series information also states a rated voltage of AC 1000 V / DC 1500 V, and for this size group, rated current up to 450 A is specified. The blue color code follows the manufacturer's code 23.
