Product Overview
Description

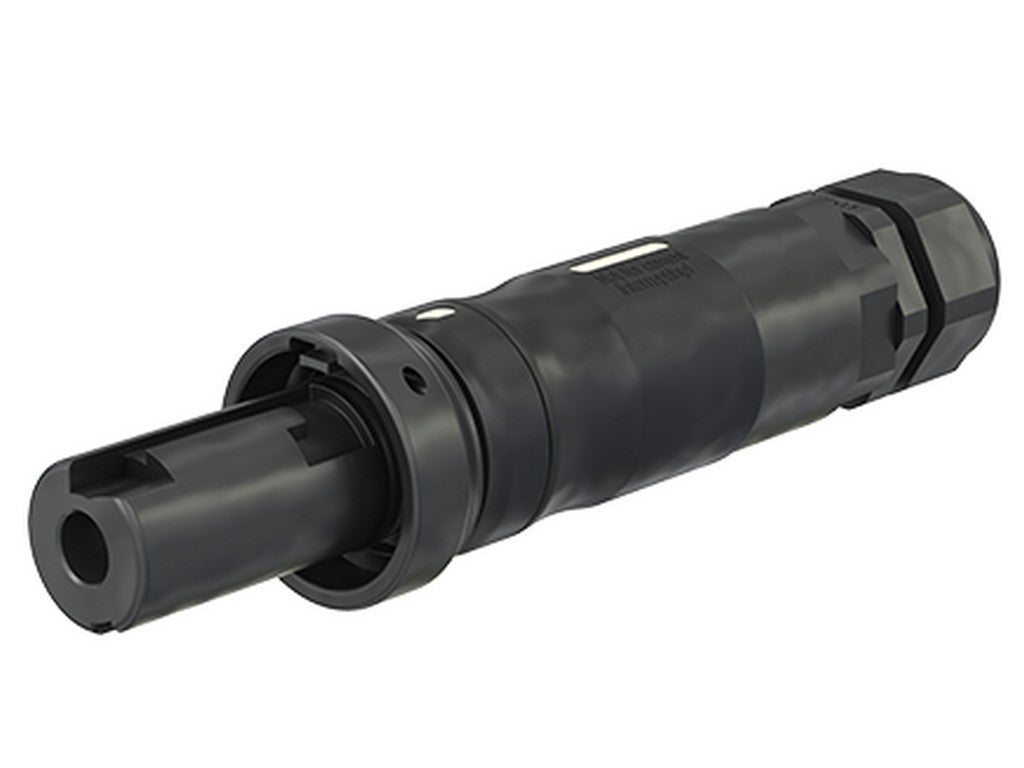

The KBT10BV-AX/M25/6-16-C1 is an insulated, unipolar circular connector from Stäubli (order no. 15.0644C1). The product is part of the 10BV series and features bayonet locking as well as AxiClamp termination designed for flexible copper conductors, class 5. The series is presented in the Stäubli catalog with operating characteristics and mounting information for this family of insulated connectors.Functional Characteristics
- Bayonet locking for quick connection and disconnection.
- AxiClamp termination for flexible copper conductors, class 5.
- The product is part of the 10BV series with specified electrical limits for the series.
Documentation
The Stäubli product catalog contains dimensions, conductor areas, AxiClamp mounting instructions, and derating diagrams for the 10BV family. For detailed technical information and mounting instructions, please refer to the manufacturer's catalog:
Typical Applications
- Used in contexts such as switching devices, test benches (bancs d'essai), and low-voltage emergency power generators, as specified in the Stäubli product catalog.
Specifications
- Manufacturer: Stäubli
- Manufacturer Part Number: 15.0644C1 (KBT10BV-AX/M25/6-16-C1)
- Product Type: 10BV series, unipolar circular insulated connector
- Locking Type: Bayonet locking
- Termination Method: AxiClamp for flexible copper conductors, class 5
- Series Nominal Limits: up to 250 A (series designation in the catalog for this variant)
- Voltage Limits: AC 1000 V / DC 1500 V (specified for the 10BV series in the catalog)
- Conductor Cross-Section (series range): 6–70 mm² (specified in the catalog)
- Color Coding for Ordering: two-digit color code added to order no. (e.g., 23 = blue), as stated in the catalog
