STAUBLI 14.5252-29

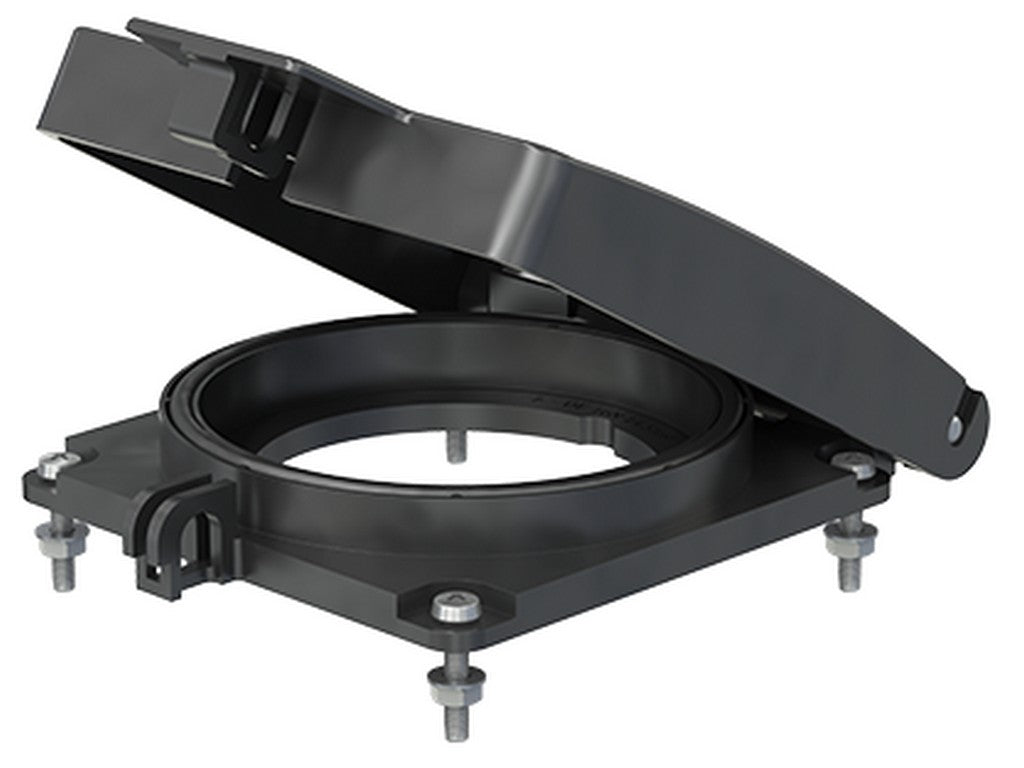

The STAUBLI 14.5252-29 is a protective cover for panel-mounted receptacles and for sealing a disconnected junction box. It is a spring-loaded hinged lid that protects the opening from mechanical impact, dirt, and water splashes. In practice, it is the type of spare part or accessory that is installed when a plug connection needs to be protected but still easily accessible.
The cover is rated IP65, making it suitable for environments where protection against dust and water splashes is required. It can also be secured with a padlock to prevent unauthorized access. Color coding is done with separate color coding discs, and mounting instructions for this type are available from Stäubli.
It fits selected panel receptacles, including ID/B16BV-NS-A and ID/S16BV-NS. Depending on the connector type, it is mounted either with or without an adapter ring, and some variants can be retrofitted directly onto the front panel.
