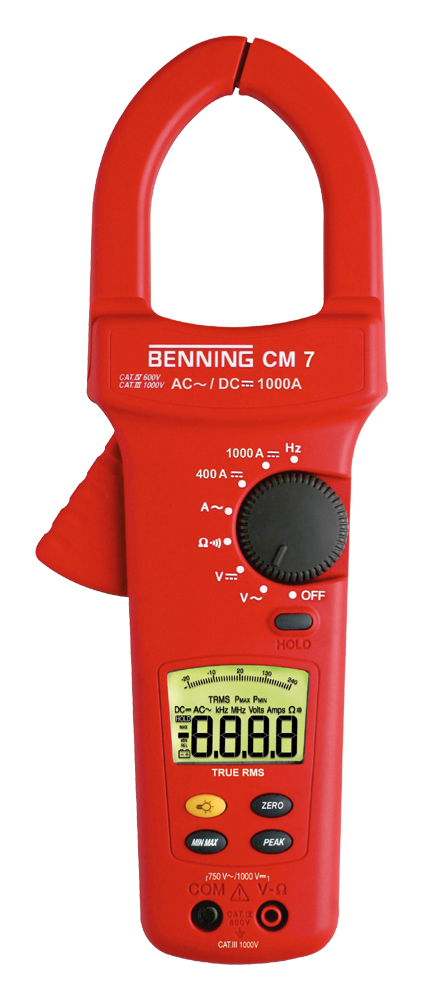

BENNING CM 7
The BENNING CM 7 is a digital clamp meter with multimeter functions, used for measuring current without breaking the circuit. This makes it practical for quickly and less invasively checking current in electrical installations and other professional measurement situations.
The instrument uses TRUE RMS measurement, making it suitable for measurements where the signal is not perfectly clean and uniform. It measures both AC and DC currents up to 1000 A and also has measurement ranges for voltage, resistance, and frequency. This makes it a versatile tool for troubleshooting, checking, or documenting electrical values.
The large jaw opening of 53 mm allows it to clamp around conductors with larger cable dimensions. At the same time, the model is classified for measurement category CAT IV 600 V, which is relevant for work in more demanding electrical environments. The backlit LCD display makes reading easier, even in poor lighting conditions.
With a basic accuracy of 0.7%, the BENNING CM 7 is a measuring instrument that provides a solid foundation for daily technical and service tasks.
See data sheet from manufacturer
Typical applications
- Checking AC and DC currents in electrical systems
- Troubleshooting and servicing installations
- Measuring voltage, resistance, and frequency
- Tasks where current measurement is desired without interrupting the conductor connection
Specifications
- Manufacturer: BENNING
- Model: CM 7
- Item number: 044059
- Type: Digital clamp meter / multimeter
- Measurement principle: TRUE RMS
- AC current: up to 1000 A
- DC current: up to 1000 A
- AC voltage: 0.1 V–750 V
- DC voltage: 0.1 V–1000 V
- Resistance: up to 400 Ω
- Frequency: 1 Hz–400 Hz
- Measurement category: CAT IV 600 V
- Max jaw opening: 53 mm
- Display: LCD display with backlight
- Basic accuracy: 0.7%
Content generated with AI - subject to errors.
Contact HIN for further product information.
