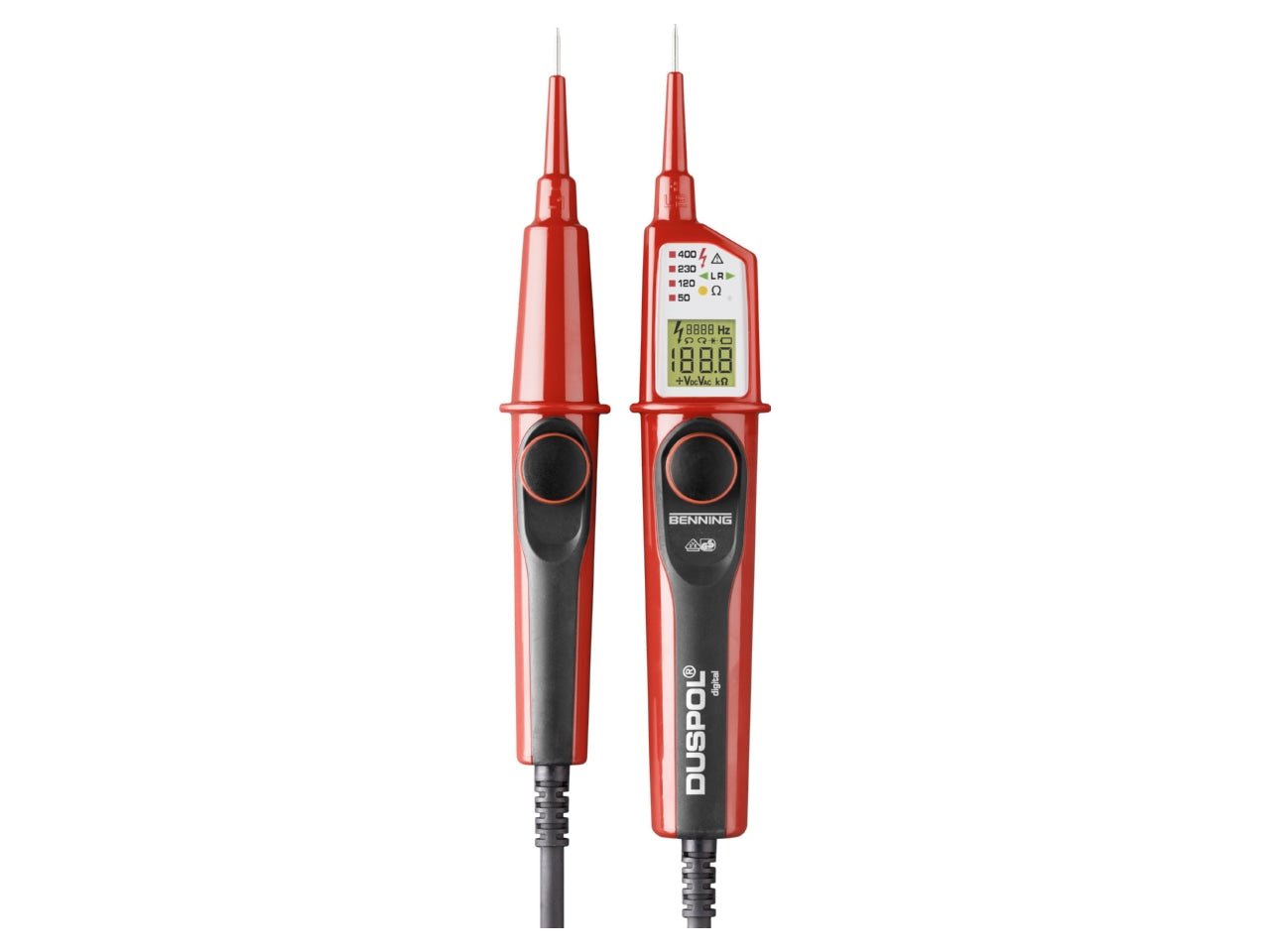

BENNING DUSPOL® digital voltage tester
The BENNING DUSPOL® digital is a voltage tester for professional electrical work, where you need to quickly determine if voltage is present and simultaneously get more information about the signal. It shows voltages from 1 to 1000 V AC and up to 1200 V DC, making it suitable for many common inspection tasks in installations and equipment.
What makes this instrument special is that it doesn't just show voltage. It can also be used for phase sequence testing, single-pole phase testing with a red LED, polarity testing, and continuity testing with a buzzer and yellow LED. Additionally, it can measure frequency, resistance, and diodes, and illuminate the test point, making it easier to work in dark or confined spaces.
There are also some practical features for fieldwork: a non-contact cable break detector, vibration alarm, pushbutton for load connection, and a voltage display that works without a battery from 50 V AC/DC. This makes it easier to use in situations where a quick and clear indication is needed.
The BENNING DUSPOL® digital is tested according to DIN EN 61243-3 (VDE 0682-401) and is rated for CAT IV 600 V and CAT III 1000 V. It is also IP65, meaning it is designed for demanding use in professional work environments.
See data sheet from the manufacturer
Watch product video from the manufacturer
Typical applications
- Checking AC and DC voltage in electrical installations
- Phase sequence testing and phase testing
- Continuity and polarity testing
- Troubleshooting in cables, components, and circuits
- Work requiring on-site measurement and visual indication
Specifications
- Voltage range: 1–1000 V AC (TRUE RMS)
- Voltage range: up to 1200 V DC
- Frequency measurement: 1–1000 Hz
- Resistance measurement: 0.1 kΩ–300 kΩ
- Diode test
- Non-contact cable break detector
- Vibration alarm
- Pushbutton for load connection
- Voltage indication without battery from 50 V AC/DC
- IP65
- Tested according to DIN EN 61243-3 (VDE 0682-401)
- Category: CAT IV 600 V and CAT III 1000 V
- Item number: 050263
