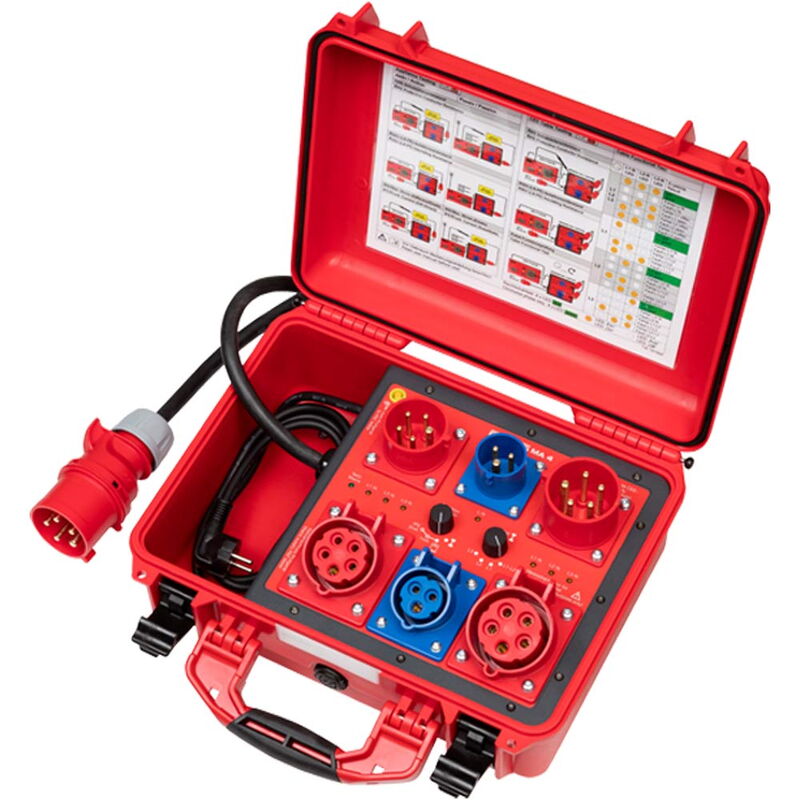

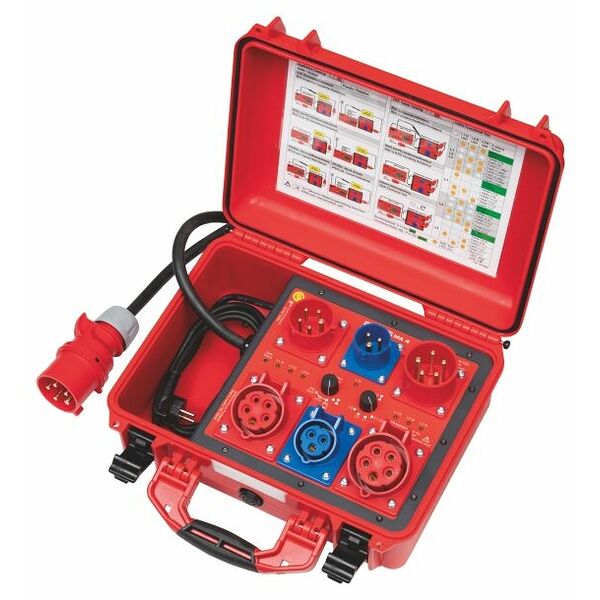

BENNING MA 4
The BENNING MA 4 is a measuring adapter for testing both single-phase and three-phase equipment up to 32 A. It is used with an installation where test equipment needs to be safely and clearly connected to devices that are to be inspected according to current control requirements.
The adapter is designed for active and passive testing and is specified for use in tests according to DIN VDE 0701-0702, DIN EN 62353, DIN EN 60974-4, and DGUV Regulation 3. This makes it relevant in environments where systematic safety testing of electrical equipment is carried out.
On the connection side, there are CEE test connections for 16 A 3-pole as well as 16 A and 32 A 5-pole. This allows handling several types of three-phase supplies without resorting to improvised solutions. For three-phase devices in operation, the MA 4 also includes residual current measurement, which is practical when monitoring the equipment's behavior during actual use.
Delivery is in a robust, waterproof transport case with IP 67 when open. This makes the adapter easier to protect and transport during daily use. A separate power connection cable is also available as an accessory, item no. 044163.
Typical applications

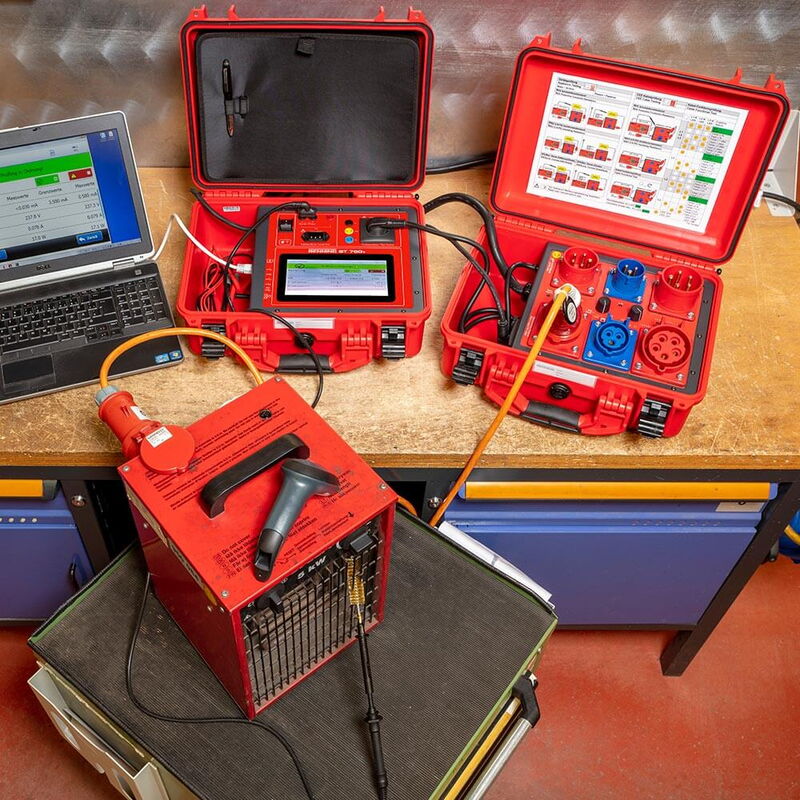

The adapter is typically used for safety testing and inspection of electrical equipment in service, maintenance, and test environments where both single-phase and three-phase equipment needs to be connected uniformly.
Specifications
- Manufacturer: BENNING
- MPN: 044162
- Model: MA 4
- For active and passive testing of single-phase and three-phase equipment up to 32 A
- For testing according to DIN VDE 0701-0702, DIN EN 62353, DIN EN 60974-4, and DGUV Regulation 3
- CEE test connections: 16 A 3-pole, and 16 A and 32 A 5-pole
- Includes differential current measurement for three-phase equipment in operation
- Delivered in a robust, waterproof transport case
- IP 67 (open)
- Weight: approx. 6 kg

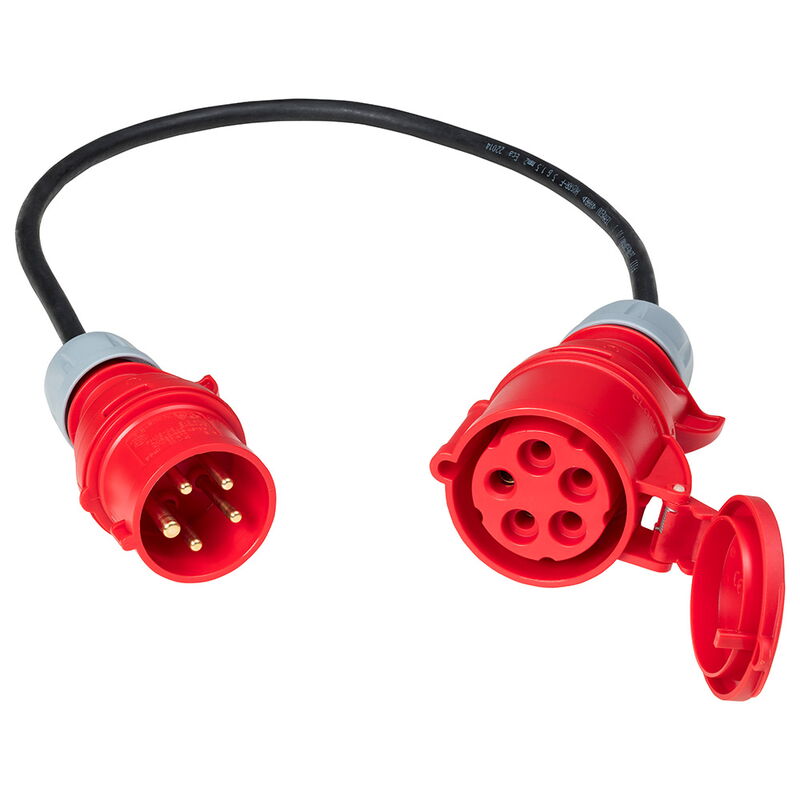

- Accessories: power connection cable, item no. 044163
- See datasheet from the manufacturer
