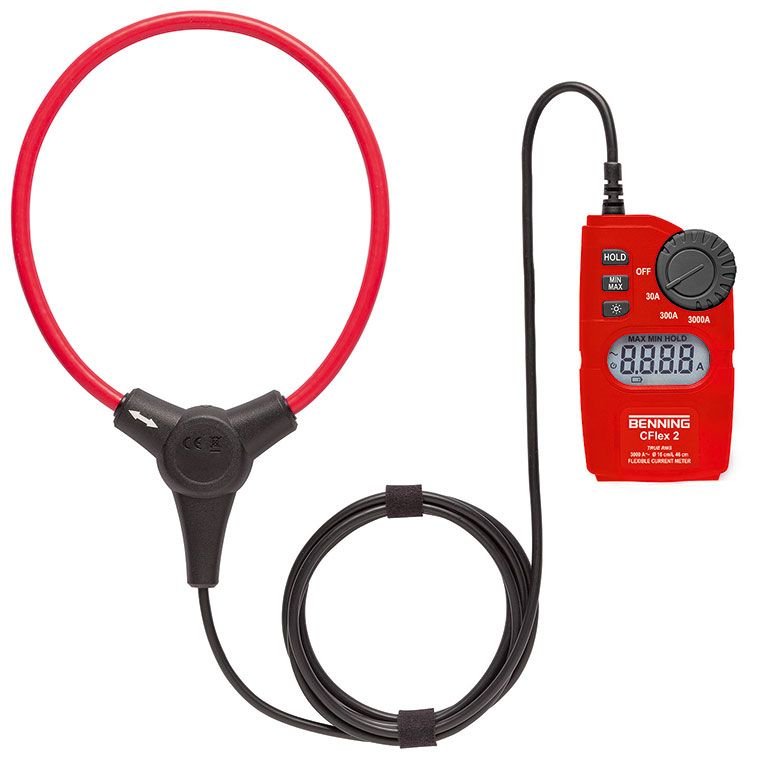

BENNING CFlex 2
The BENNING CFlex 2 is a flexible current transformer for measuring AC current when a conventional current clamp is impractical to use. It is designed to wrap around the conductor and provide a digital TRUE RMS reading of the current, allowing AC currents in the range of 0.1 A to 3000 A to be read.
The flexible measuring loop makes it easy to get around cable assemblies and in confined spaces. The loop is 46 cm long with a diameter of 16 cm, and the connection cable is 1.8 m. The display is a large, backlit 4-digit LCD, making readings easy to see in practice. The instrument also features HOLD, MIN/MAX memory, auto-power off which can be deactivated, and a low battery voltage indicator.
The CFlex 2 is relevant for testing and measurement tasks where a flexible solution for current detection is required without having to interrupt the installation. It is rated for CAT IV 600 V and comes with a protective pouch and batteries.
See datasheet from manufacturer
See product video from manufacturer
Typical applications
- Measuring AC current in switchboards and installations
- Checking high currents where flexible access around the conductor is an advantage
- Test and service tasks in electrical engineering environments
Specifications
- Manufacturer: BENNING
- MPN: 044069
- Type: Flexible AC current transformer
- Measurement principle: Digital TRUE RMS
- Measuring range: 0.1 A to 3000 A AC
- Selectable ranges: 30 A / 300 A / 3000 A
- Display: 4-digit LCD with backlight
- Functions: HOLD, MIN/MAX, auto power off (deactivatable), low battery voltage indicator
- Measuring loop: 46 cm
- Loop diameter: 16 cm
- Cable diameter: 8.5 mm
- Connection cable: 1.8 m
- Enclosure/safety category: CAT IV 600 V
- Supplied with: Protective pouch and batteries
