STAUBLI SLM-4A-46

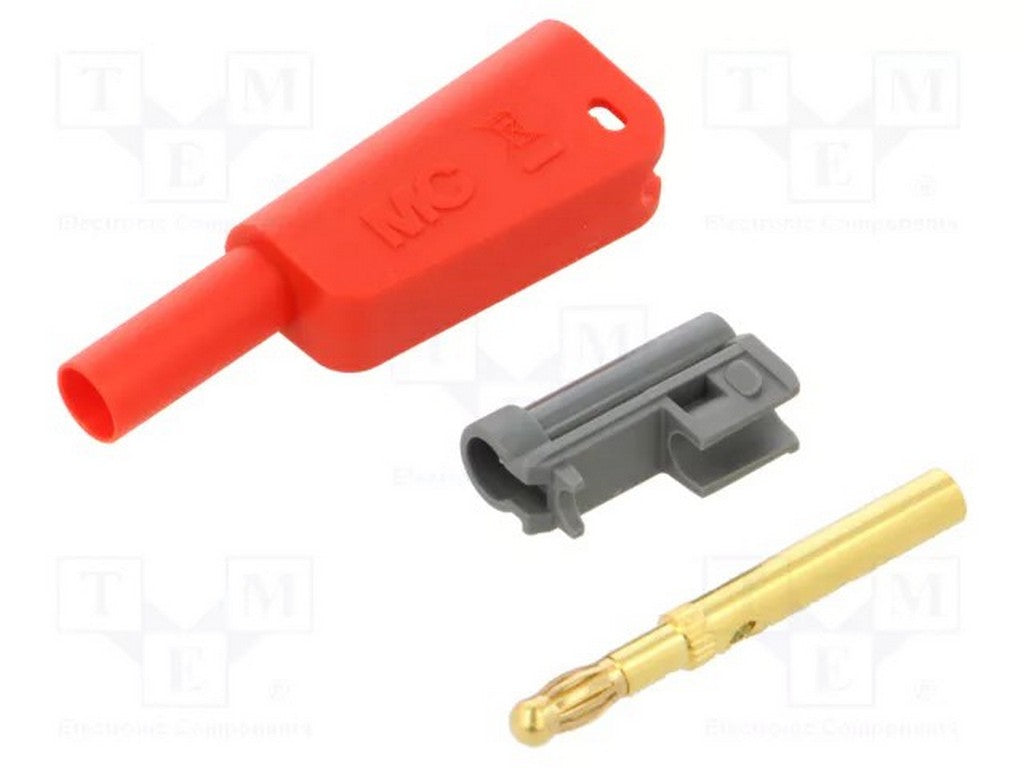

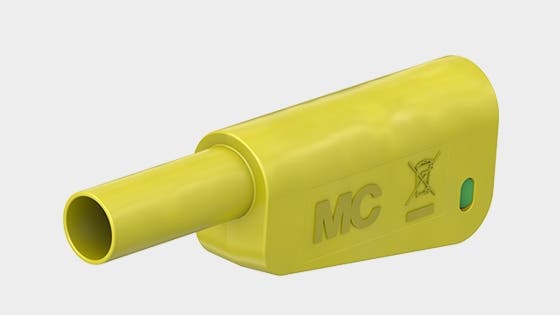

The STAUBLI SLM-4A-46 is a stackable 4 mm plug for assembling test leads. It is used when assembling your own measuring leads for testing and measurement, and where a robust and secure connection is also required. The fixed insulating sleeve and screw connection make it suitable for professional assembly, where the wire needs to be securely fastened.
Internally, the contact is made with a spring-loaded MULTILAM contact, which is a proven contact solution in the Stäubli system. In practice, this means a stable electrical connection in a compact 4 mm design. The stackable design allows for connections where multiple connections can be combined in the same system.
The SLM-4A-46 is specified as test accessory in accordance with IEC EN 61010-031 and is listed with UR approval in the Stäubli documentation. It is rated for 1000 V, CAT II, 32 A and 600 V, CAT III, 32 A, making it suitable for measurement tasks that require high voltage, current, and safe performance.
The electrical base material of the contact is CuZn with a gold surface, and the outer diameter is 4.6 mm.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 66.2025-22
- Product: SLM-4A-46
- Stackable 4 mm plug
- For self-assembly of test leads
- Spring-loaded MULTILAM contact
- Fixed insulating sleeve
- Screw connection
- Rated values: 1000 V, CAT II, 32 A / 600 V, CAT III, 32 A
- Electrical contact material: CuZn
- Surface treatment: Au
- Outer diameter: 4.6 mm
- Test accessory according to IEC EN 61010-031
- Approval: UR
