Product Overview

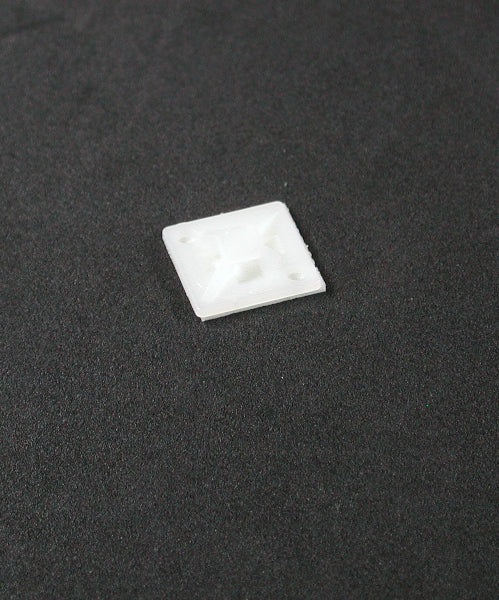

This mounting base is a 4-way, self-adhesive cable tie mount from EISENACHER, product name Eisenacher T7112080. The product is specified for use with cable ties up to 3.9 mm and has a stated footprint of 20 × 20 mm.
Description
The Eisenacher T7112080 is made of PA 66 and is designed as a four-way (4-way) mounting base with a self-adhesive underside. The construction and dimensions are documented in the manufacturer's data sheet, which specifies nominal dimensions and material data, as well as fire classification and operating temperature range.
Documentation
Typical Applications
The product's function and properties make it suitable for fastening cable ties with the following characteristics:
- Used for fastening cable ties up to 3.9 mm in width.
- Attached by self-adhesion to a surface (self-adhesive mounting base).
Specifications
- Manufacturer: EISENACHER
- Article Number / Product Name: T7112080 (Eisenacher T7112080)
- Type: Mounting Base, 4-way, self-adhesive
- Material: PA 66
- Stated Footprint: 20 × 20 mm (listed on product page)

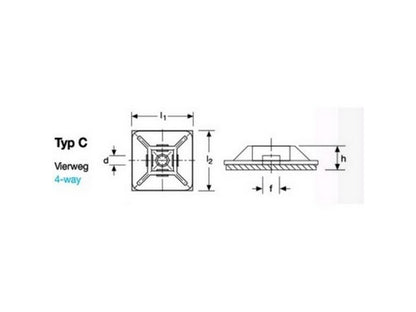

- Nominal Dimensions: 19 ± 0.3 mm × 19 ± 0.3 mm
- Central Hole Diameter: ø 3.5 ± 0.3 mm
- Dimensions f / h: f = 4 ± 0.2 mm, h = 4.4 ± 0.3 mm
- Suitable for cable ties up to: 3.9 mm
- Temperature Range: −40°C to +85°C
- Fire Classification: UL94 V-2
- Packaging Quantity: 100 pcs.
- EAN: 4251364526767
Source: Manufacturer's product information and data sheet (see documentation above).
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
