Multifunction tool for conductors

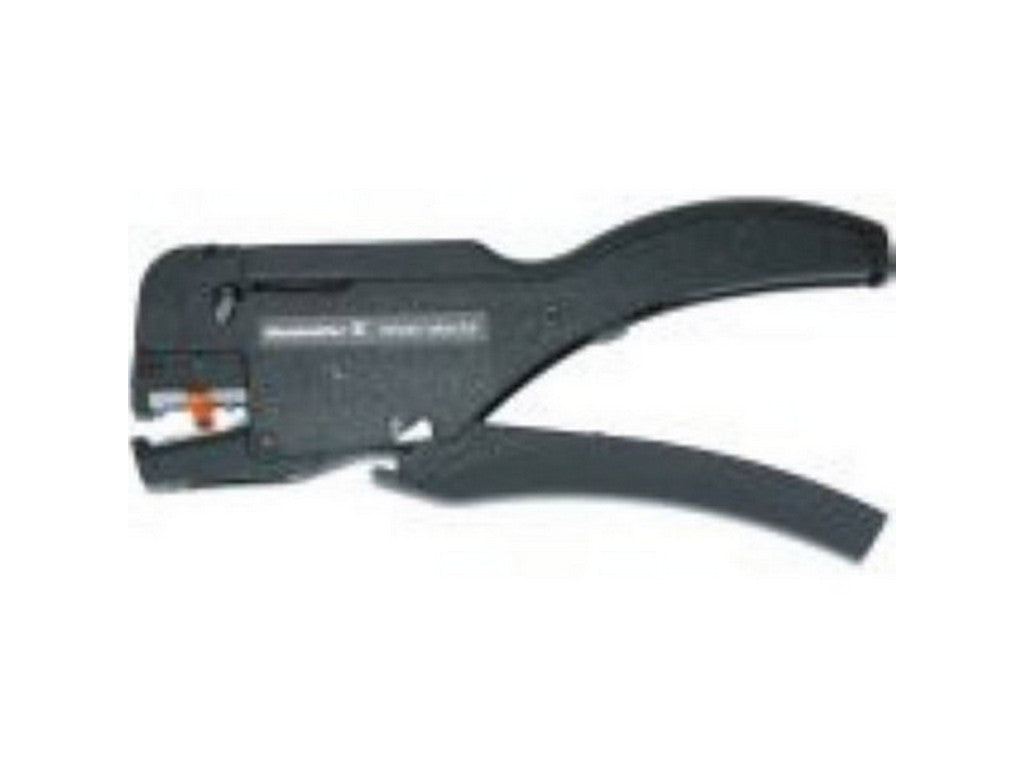

The Stripax Plus 2.5 is a multifunctional hand tool for cutting, stripping, and crimping single conductors. The product processes wire-end ferrules in the cross-section range of 0.5–2.5 mm² using a universal crimping die with a trapezoidal crimp profile. Wire-end ferrules are stored in a magazine in the handle and automatically fed to the crimping die.
Features
- Cuts, strips, and crimps single conductors.
- Crimping of wire-end ferrules in the range of 0.5–2.5 mm².
- Universal crimping die with trapezoidal crimp profile.
- Magazine in the handle for automatic feeding of linked wire-end ferrules.
- Self-adjusting stripping unit and adjustable stripping length via end stop.
- Ability to cut cables up to 2.5 mm².
An official datasheet with further documentation from the manufacturer is available. See datasheet from the manufacturer.
Typical applications
- Processing of single conductors by cutting, stripping, and crimping.
- Crimping of wire-end ferrules supplied as linked strips.
Specifications
- Product name: Stripax Plus 2.5
- Manufacturer: HIN
- Manufacturer's item number: 9020000000
- Crimping range: 0.5–2.5 mm²
- Crimp type/profile: Trapezoidal crimp
- Magazine for linked wire-end ferrules with automatic feeding
- Self-adjusting stripping unit; adjustable stripping length via end stop
- Cutting capacity: up to 2.5 mm²
- Width: 210 mm
- Net weight: 248.63 g
- Note: Only strips of linked wire-end ferrules (50 pcs) from Weidmüller may be processed (according to the manufacturer's datasheet).
