STAUBLI 67.9537-21

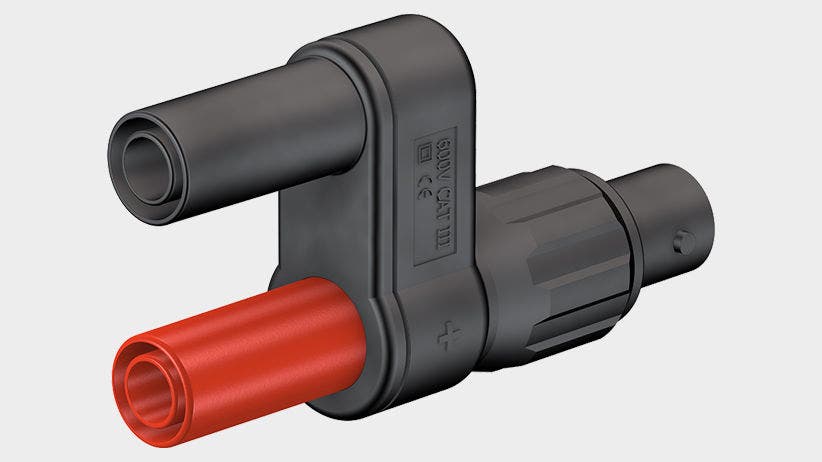

STAUBLI 67.9537-21 is a two-pole, touch-proof adapter used to connect a Ø 4 mm measurement system to a BNC system. It is the type of adapter chosen when test equipment and measuring leads do not have the same connector type but still need to be connected securely and controlled.
The adapter has a BNC female connector and Ø 4 mm MULTILAM male connectors with a rigid insulating sleeve. This makes it suitable for work situations where correct connection and touch protection are required. The contact surfaces are coated with Au and Ni, and the inner conductor contact in the BNC connector is made of gold-plated brass.
It is classified as test accessory according to IEC EN 61010-031 and is rated for 600 V, CAT III and 1000 V, CAT II. Additionally, it is UL and CE approved.
Typical applications
The adapter is typically used in test and measurement setups where a BNC connection needs to be connected to a Ø 4 mm system without compromising the touch-proof design.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 67.9537-21
- Type: two-pole touch-proof adapter
- Type designation: XF-SS/4
- For connection between Ø 4 mm system and BNC system
- BNC female connector
- Ø 4 mm MULTILAM male connector with rigid insulating sleeve
- Rating: 600 V, CAT III
- Rating: 1000 V, CAT II
- Contact surfaces: Au; Ni
- Standard: IEC EN 61010-031
- Approvals: UL, CE
- Datasheet revision: 08.2022
