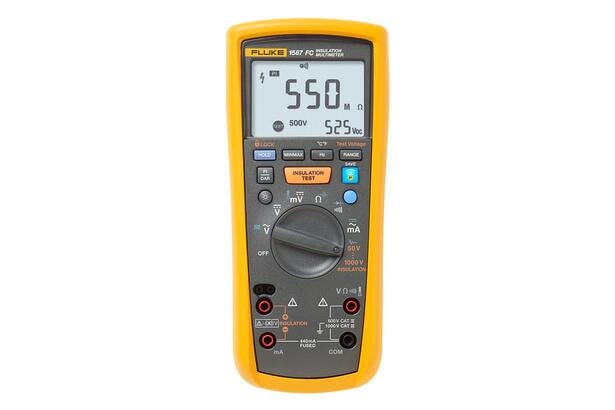

Fluke 1587 FC Insulation Multimeter Kit with i400 Current Clamp
This kit combines an insulation multimeter and an AC current clamp into a single solution for troubleshooting and control work. The Fluke 1587 FC is used when you want to measure both common electrical quantities and also test the insulation in cables, motors, panels, or other equipment where insulation faults may be part of the problem.
What makes the kit relevant is precisely the combination. The 1587 FC can perform insulation measurements with multiple test voltages, allowing you to select the voltage appropriate for the task and get a more targeted picture of the insulation condition. At the same time, the instrument functions as a multimeter, so it can be used for daily electrical measurements without having to switch between several different instruments.
The included i400 AC current clamp makes it possible to measure AC current without breaking the circuit. This is practical for service and troubleshooting, where you want to check power consumption quickly and safely. The current clamp has a measurement range from 1 A to 400 A and provides an output of 1 mA per A, so it is designed to work with a suitable measuring instrument.

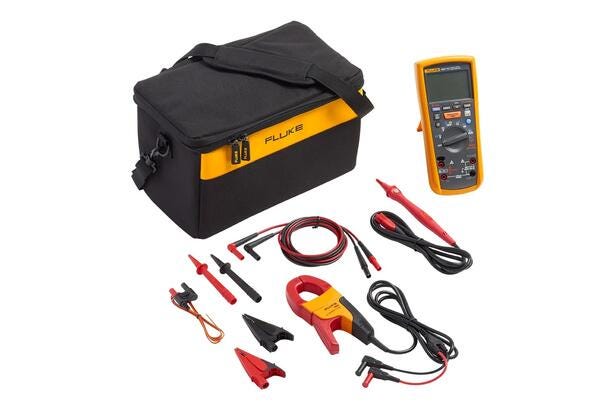

The kit is delivered in a soft case, so the tools and accessories can be kept together. For a professional user, this is particularly interesting because you get a complete kit for both insulation testing and general electrical measurements in one package.
You can read more here:
Contact HIN for advice on the Fluke 1587 FC kit
View datasheet from the manufacturer
Specifications
- Fluke 1587 FC insulation multimeter and Fluke i400 AC current clamp
- Fluke part number: 4692725
- i400 current clamp continuous current range: 1 A to 400 A
- i400 current clamp output: 1 mA/A
- i400 current clamp overvoltage rating: CAT III 1000 V / CAT IV 600 V
- 1587 FC insulation testing with test voltages of 50 V, 100 V, 250 V, 500 V, and 1000 V
- 1587 FC insulation measurement range up to 2.0 GΩ
- Soft case included
- Accessories: remote probe, test leads, alligator clips, and K-type thermocouple (1587 FC only)
