Product Overview

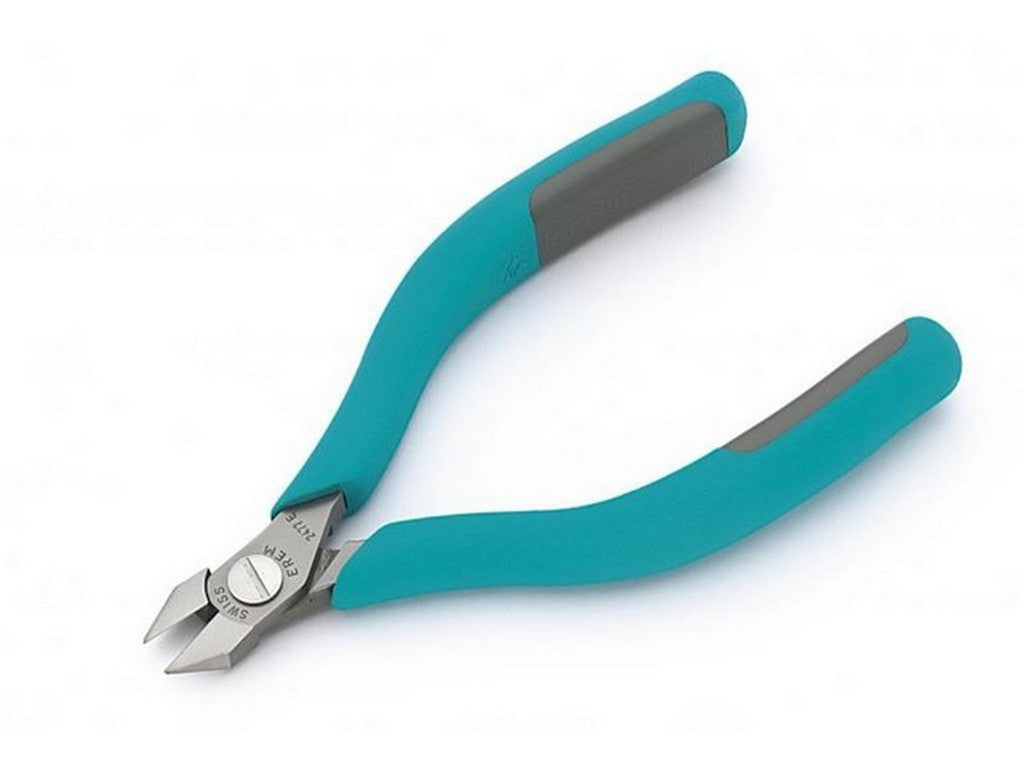

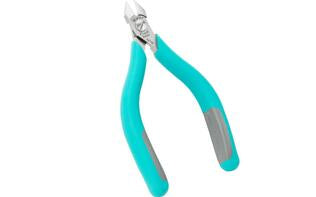

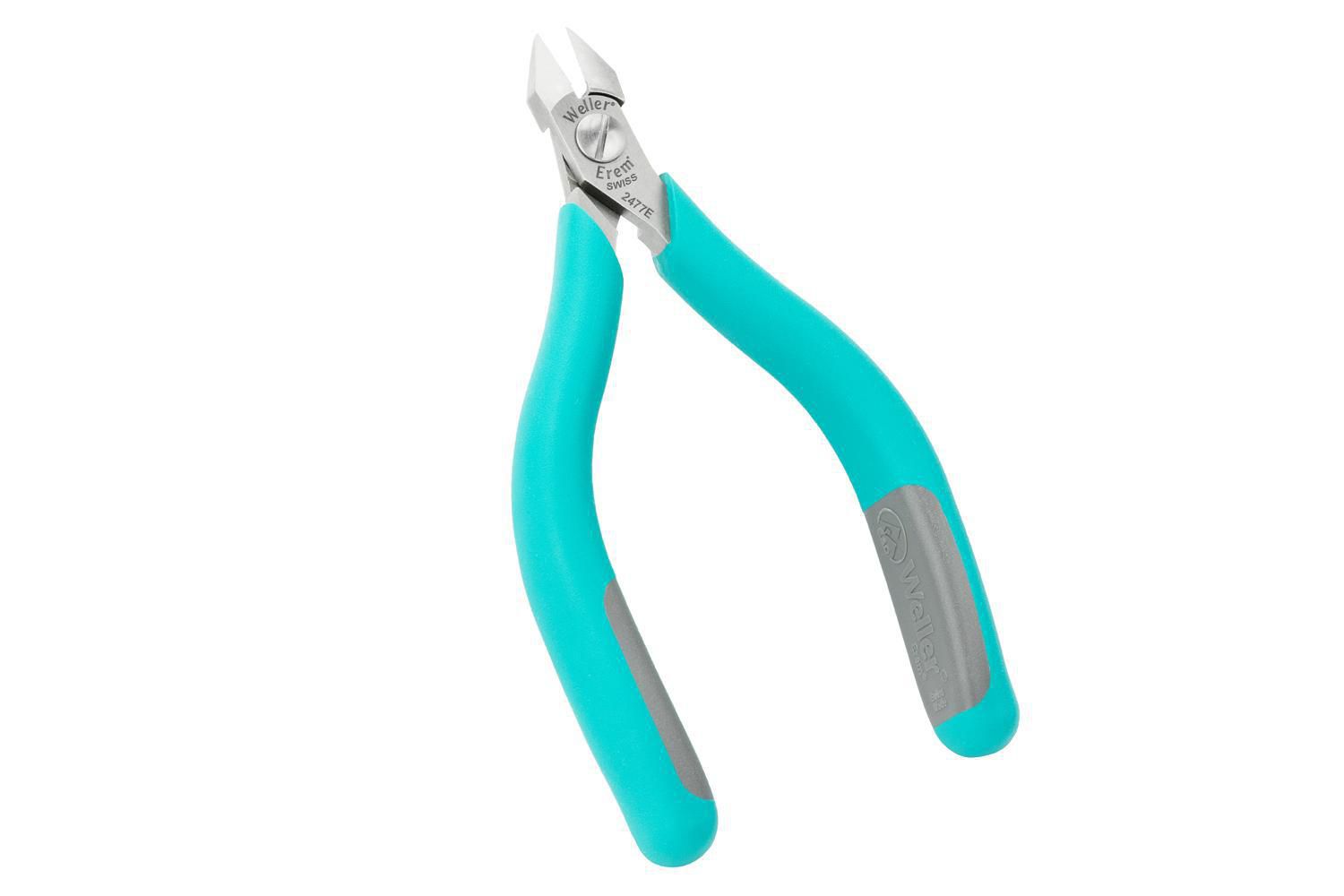

The 5" ESD Safe Flush Tapered Head Side Cutter (Item No. 2477E) from EREM is a precision cutter in the Weller Erem Series 2400 MagicSense. The 2477E is specified as a medium-sized precision cutter with flush-cut and pointed tips, a short, robust head with beveled edges for access to tight spaces. The product is ESD-safe and features a non-reflective surface.Design and Materials
- Cutting edges are induction hardened (over 60 HRC) and made of special tool steel.
- The head shape is short and sturdy with angled, pointed jaws for access to hard-to-reach areas.
- The handle is ergonomically optimized (Series 2400 MagicSense) to reduce fatigue from repeated use.
- The blades are resharpenable and have a non-reflective surface.
Documentation
Typical Applications
Used for precision cutting in microelectronics, as specified in the manufacturer's technical data (Application: Microelectronic).
Specifications
- Product Name: Item No. 2477E (5" ESD Safe Flush Tapered Head Side Cutter)
- Manufacturer: EREM
- Product Family: Series 2400 MagicSense
- Length: 5 in
- Cut Type: Flush
- Cutting Capacity - Copper: 1.29 mm
- Cutting Capacity - Medium Wire: 0.99 mm
- Cutting Edge Length: 10.16 mm
- ESD Safe: Yes
- Head Length: 0.7 in
- Head Thickness: 0.2 in
- Head Width: 0.4 in
- Weight (catalog): 0.074 kg
- Cutting Edge: Induction hardened (>60 HRC), special tool steel
- Surface: Non-reflective
- Other: Resharpenable
