Loddespiss konisk skarp 0,4 mm for TMT-9000S (STTC-022)

Thermaltronics

SKU:M6CS152

Description

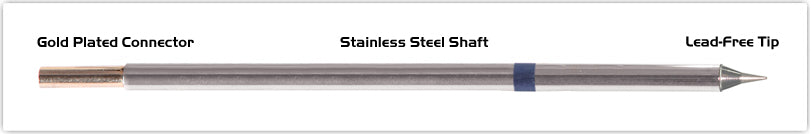

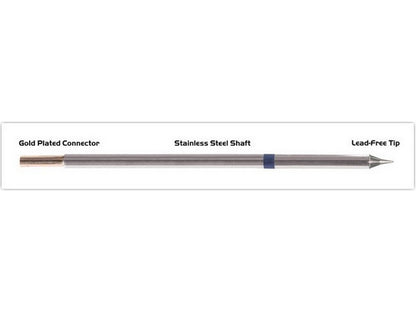

M6CS152 is a conical sharp soldering tip from Thermaltronics' M-series, designed for 600-type cartridges. It features a 0.40 mm (0.016") conical tip with an outer length of 8.50 mm (0.33"). The product is RoHS-compliant and lead-free.

Technical Details

M6CS152 is specified as a 600-type cartridge tip, utilizing Thermaltronics' Curie Heat Technology for immediate heat transfer. The no-load temperature range is specified as 325°C–358°C. The manufacturer notes that tip-to-tip variation and geometry may affect the measured no-load temperature.

Documentation

For detailed technical specifications, refer to the manufacturer's datasheet:

View Manufacturer Datasheet

Typical Applications

This product is suitable for temperature-sensitive soldering tasks. M6CS152 is specifically designed for applications requiring a 600-type cartridge with a fine, conical tip of 0.40 mm width.

Compatibility

Compatible stations: TMT-9000S-1, TMT-9000S-2, MX-500, MX-5000, MX-5200

Specifications

Product Name: M6CS152
Manufacturer: THERMALTRO / Thermaltronics
Tip Style: Conical Sharp
Tip Width: 0.40 mm (0.016")
Tip Length: 8.50 mm (0.33")
Cartridge Type: 600 Type Cartridge
No-Load Temperature Range: 325°C - 358°C
Material Composition: RoHS-compliant and lead-free
RoHS: Yes (Compliant)
ESD: ESD-free as per manufacturer data
Equivalent to: STTC-022
Intended for use with: TMT-9000S-1, TMT-9000S-2, MX-500, MX-5000, MX-5200
Note on No-Load Temperature: Manufacturer specifies typical no-load variation of ±1.1°C and notes that tip geometry and length may affect measured no-load temperature.
