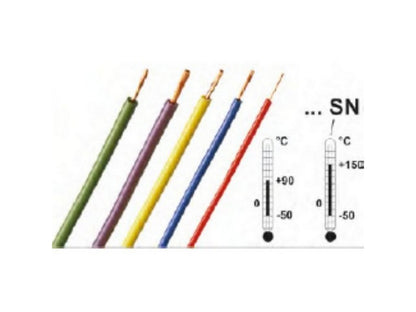

SILI-E 1.0 from Stäubli (part number 61.7554-10021) is a super-flexible, basic insulated multi-core cable with a cross-sectional area of 1.0 mm². The product's primary characteristics are documented by Stäubli and specified in the manufacturer's datasheet dated 02.2025.
Technical Description
Conductor cross-section: 1.0 mm²
Strand design: 259 x 0.07 mm
Conductor diameter: 1.4 mm
Cable diameter: 3.0 mm
Insulation material: silicone (SIL)
Insulation thickness: 0.8 mm
Operating temperature range: -50 °C to +90 °C
Rated values: AC 600 V, 19 A
Certifications: UR, CE, UKCA, EAC
Documentation
The manufacturer provides a dedicated PDF datasheet for SILI-E 1.0. For technical details and complete product information, refer to the manufacturer's documentation:
View Manufacturer Datasheet
Specifications
Product name: SILI-E 1.0
Part number: 61.7554-10021
Conductor cross-section: 1.0 mm²
Strand design: 259 x 0.07 mm
Conductor diameter: 1.4 mm
Cable diameter: 3.0 mm
Insulation material: SIL (silicone)
Insulation thickness: 0.8 mm
Temperature range: -50 °C to +90 °C
Rated values: AC 600 V, 19 A
Certifications: UR, CE, UKCA, EAC
Datasheet date: 02.2025
Source: Stäubli datasheet for SILI-E 1.0 (02.2025).
