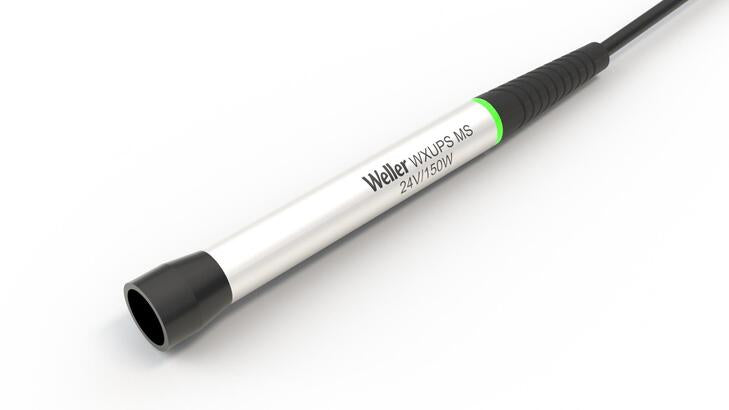

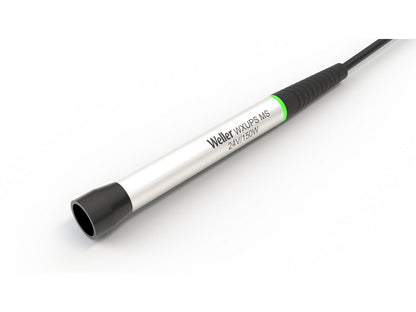

The WELLER WXUPS MS soldering iron (Item No. T0052923599) is a smart ultra soldering iron designed for Active-Tip Heating Technology. The WXUPS MS is engineered as a 150 W, 24 V handheld unit without tips featuring Thermal Core Technology for rapid and precise heat transfer.
Key Features
Power: 150 W
Voltage: 24 VAC
Temperature Range: 100–450 °C
Approx. heating time: 7 seconds (50–350 °C)
Thermal Core (Thermal Core Technology) for high power at solder joints
Compatible with RTUS MS tips
ESD-safe
Works with WXsmart stations
Typical Applications
This soldering iron is designed for heavy-duty soldering tasks and is used for component sizes from 1612 and larger (XL to XXL). The description in the manufacturer's technical data specifies the exact application for such component sizes.
Functional Details
Quick heat-up and fast recovery time for efficient workflow.
Visual process control for easy tool identification and intelligent tool detection for protection against errors.
Integrated parameter reminder to save individual soldering processes.
Reduced energy consumption via motion sensor.
Quick and safe replacement of soldering tips.
For complete technical documentation and manufacturer information, see the manufacturer's datasheet:
