ION Systems
SKU: 6110A
Product Overview
The ION_SYSTEM Model 6110/6110A compressed air ionization cartridge is a standalone unit for inline ionization or as an ionizing air gun. Model 6110A features an internal airflow sensor that only activates ionization when air flows. The unit employs IsoStat technology and has shielded tungsten emitter points. Power supply is 24 VAC (<1 W from a wall transformer).
Technical Specifications
Ionization Principle: IsoStat (intrinsically balanced)
Emitter: Tungsten, shielded emitter points
Input: 24 VAC, <1 W (from wall transformer)
Airflow (min.): 2 scfm
Connection: 1/4" NPT female (input and output); 1/8" NPT adapter available
Indicator: Green POWER LED
Typical Applications
Described in manufacturer documentation as direct applications for Model 6110/6110A:

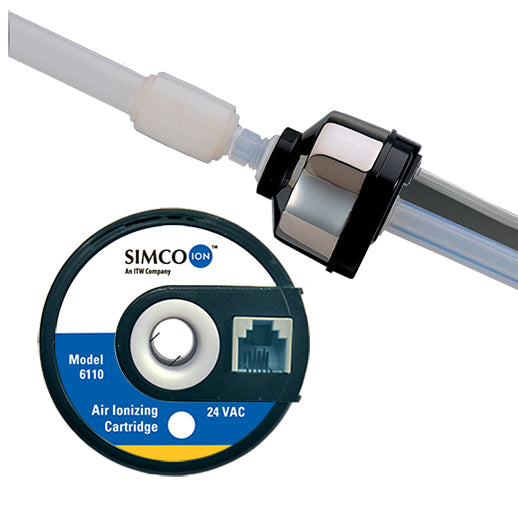

Inline ionization: reduces ESD damage and microprocessor lock-up in IC packaging and marking, surface-mount equipment and test units.

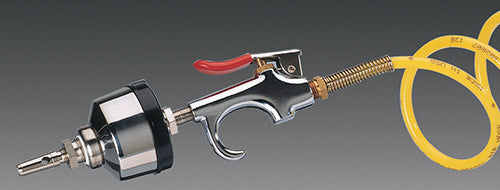

Ionizing air gun: removes particles in printed circuit board assembly, medical device production, and film processing.
Documentation
Additional technical details and ordering information can be found in the manufacturer's datasheet: View Manufacturer Datasheet
Specifications
Model Designations: 6110 (P/N 91-6110), 6110A (P/N 91-6110A)
Input Voltage: 24 VAC, <1 W from wall transformer
Equalization Time: <4 s @ 6" (15.2 cm); ±1,000 to 100 V
Balance: <±25 V @ 6" (15.2 cm)
Ion Emission: IsoStat Technology
Emitter Material: Tungsten
Air Supply Flow: Min. 2 scfm
Connections: 1/4" NPT female (input/output); 1/8" NPT adapter available
Dimensions: 2.4" x 2.125" L (6.10 x 5.40 cm) without fittings
Weight: 0.375 lb (0.17 kg)
Model 6110A: Internal airflow sensor deactivates ionization when no air flows
Warranty: 2 year limited warranty
